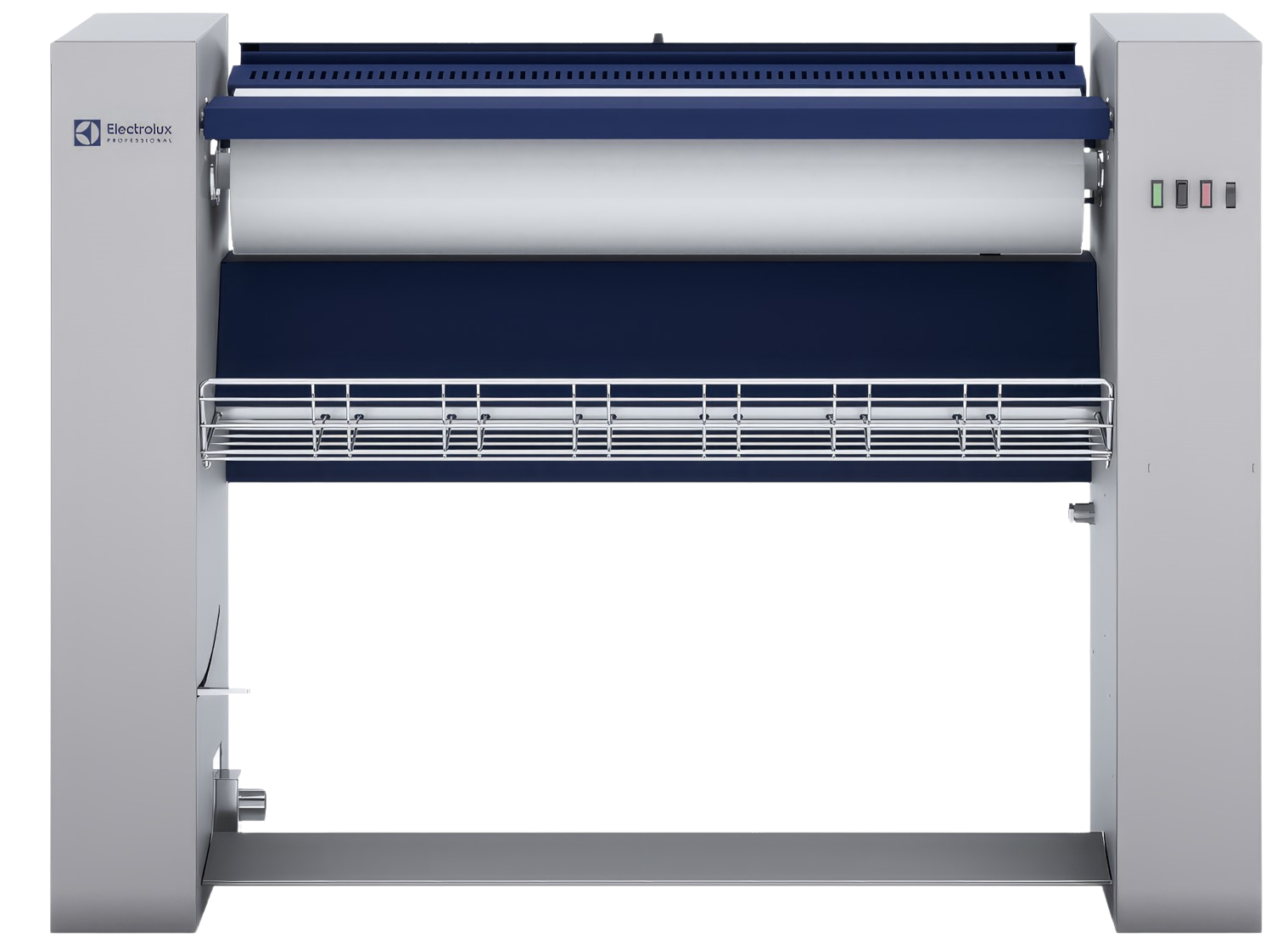

Electrolux Professional IB62316 Commercial Rotary Iron
1.6m bed-type ironer with a 230 mm cylinder and return-feed operation
The Electrolux Professional IB62316 is an electrically heated commercial rotary iron for finishing washed and pre-dried flatwork. Its 1.6m working width is suited to larger linen items and higher laundry volumes.
- ✓1.6m working width for sheets, table linen and other large flatwork
- ✓Return-feed operation allows one operator to feed and receive the linen
- ✓Up to 8.1 litres per hour water evaporation capacity
- ✓Adjustable ironing temperature for different machine-ironable fabrics
- ✓Finger guard and ergonomic control pedal support safer, easier operation
Fri 8.30am–5pm
Use the button below and we’ll call you back.
Product Overview
The IB62316 is the largest model in Electrolux Professional’s compact IB623 range, providing a nominal 1.6m working width and 230 mm diameter cylinder.
The return-feed design allows washed, pre-dried flatwork to be fed and collected from the front. Standard ironing speed is 3.4m/min, with optional variable speed control providing a 1 to 4m/min range.
Suitable applications for this machine include Commercial Laundries, Hotels & B&Bs, Care Homes, Healthcare & Hospitals, Schools, Colleges & Universities and Private Residences & Estates, as well as many others.
At a glance
How a&f can support you
Buying commercial equipment is about more than choosing the machine. We help you get the right professional solution for your site from day one, and support you long after it is installed.
We can help with site survey, correct variant selection, supply, installation, commissioning, user training and long-term service support.
- ✓ Manufacturer-trained engineers
- ✓ Around £12,000+ of spare parts carried on each service van to improve first-time fix rates
- ✓ Warranty handling, annual servicing and service contracts
- ✓ Rental and finance options available alongside outright purchase
Need this machine supplied, installed and supported?
Speak to a&f about purchase, rental, installation and service contract options for this product. Call us on 01243 55 55 25, option 1 for sales support, email sales@a-f.co.uk, or click the green button.
Features & Benefits
Practical features designed to provide consistent flatwork finishing, straightforward operation and dependable performance.
1600 mm working width
Designed for wider flatwork
The 1650 mm cylinder length accommodates larger sheets, tablecloths and similar machine-ironable linen.
Return-feed operation
Feed and receive from the front
Processed linen returns to the operator’s side, supporting efficient operation where space is limited.
230 mm cylinder
Compact bed-type ironing system
The heated bed and padded rotating cylinder provide controlled contact across the linen.
Water evaporation capacity
Up to 8.1 litres per hour
The published capacity is based on 20% residual moisture and full roller utilisation.
Adjustable temperature
Match the heat to the fabric
The operator can select a suitable temperature for different machine-ironable textiles.
Ergonomic control pedal
Hands remain available for linen
The pedal controls bed engagement and cylinder movement while the operator positions the item.
Finger guard protection
Additional operator protection
The front safety device helps protect the operator while feeding linen into the machine.
Durable cylinder covering
Steel wool and cotton felt padding
The layered cylinder covering supports reliable linen drive and long-term professional use.
Steel working surfaces
Robust feeding table and reception tray
Steel construction provides durable surfaces for feeding and collecting finished linen.
Optional variable speed
Adjustable from 1 to 4 m/min
Optional speed control allows the ironing pace to be matched more closely to the linen.
Optional Superior package
Nomex padding and metallic stripper
The optional package provides longer-life padding and helps prevent linen adhering to the cylinder.
Low operating noise
54 dB(A) published airborne sound level
The specified sound level supports installation within a well-planned professional laundry environment.
Technical specifications
Key selection, installation and performance information for the Electrolux Professional IB62316 rotary iron.
Choosing the right machine
Is the Electrolux Professional IB62316 Commercial Rotary Iron the right model for me?
The IB62316 is designed for sites that need to finish larger items of pre-dried, machine-ironable flatwork using a compact return-feed machine.
Its 1600 mm nominal working width makes it the largest of the three IB623 models. The available space, linen dimensions, residual moisture and required throughput should all be checked before ordering.
What should I check before purchasing this machine?
This model is a good choice where a 1600 mm working width is required and a front return-feed arrangement suits the planned laundry layout.
Before purchasing this machine, it is worth checking:
- Linen dimensions: confirm that a 1600 mm nominal working width suits the largest items being processed.
- Laundry volume: compare the required throughput with the published ironing speed and evaporation capacity.
- Residual moisture: linen must be washed, suitably pre-dried and approved for machine ironing.
- Available space: allow for the machine, the operator, linen handling and service access.
- Electrical supply: confirm that the site can provide the required 400v three-phase supply.
Services, drainage and cycle times
The UK specification requires a suitable 400v three-phase electrical supply. The machine has an 8.7 kW total connected load and requires protection appropriate to the selected electrical configuration.
Output is affected by the fabric, item thickness, linen preparation, residual moisture, selected temperature, operator technique and roller utilisation.
- Electrical connection: installation must be completed by suitably qualified personnel.
- Exhaust: the IB62316 has a 40 mm outlet, although external ducting is not required for every normal installation.
- Standard ironing speed: 3.4 m/min at 50 Hz.
- Optional speed control: provides an adjustable range from 1 to 4 m/min.
- Water evaporation: the 8.1 litres/hour figure is based on 20% residual moisture and full roller utilisation.
Replacing an older model?
The IB62316 may suit replacement of another compact return-feed or bed-type ironer where the working width, output and electrical requirements are comparable.
Before replacing an existing ironer, compare:
- Working width: check both the nominal 1600 mm width and the linen normally processed.
- Overall dimensions: confirm access for a machine measuring 2045 × 510 × 1025 mm.
- Electrical services: verify voltage, phases, connected load and protective rating.
- Workflow: confirm that front return feed suits the room and operator arrangement.
- Ventilation: assess heat, moisture and any need for connection to an external exhaust route.
The precise site services, access route and installation clearances should be checked before the existing machine is removed.
Compliance, hygiene and environment
The ironer must be used only for previously washed, suitably pre-dried textiles that are approved for machine ironing. Operators should be trained in safe feeding, temperature selection and emergency procedures.
Good laundry hygiene depends on the complete process, including washing, handling, segregation, drying, ironing, storage and staff procedures. The ironer alone does not guarantee a validated hygiene outcome.
- Operator safety: keep the finger guard functional and never bypass safety devices.
- Textile suitability: follow the textile manufacturer’s care and ironing instructions.
- Ventilation: provide a sufficiently ventilated working area and manage heat and moisture appropriately.
- Maintenance: arrange routine inspection and servicing by competent personnel.
- End of life: dispose of the machine through an appropriate recycling facility.
Product downloads
Helpful documents for this machine
Download the confirmed documents for this product below. If you need installation guidance, compliance information or help confirming whether this is the right machine, contact a&f and we will be happy to help.
Electrolux Professional IB62316 Rotary Iron Data Sheet
Technical data covering the IB62310, IB62314 and IB62316 bed-type rotary iron models.
Electrolux Professional IB62316 Rotary Iron Operating Instructions
Operating, safety and routine care information for the IB62310, IB62314 and IB62316 models.
Electrolux Professional IB62316 Rotary Iron Installation Instructions
Installation requirements and technical guidance for the IB62310, IB62314 and IB62316 models.
Need another document or more product information?
If you need installation instructions, compliance documents, user training guidance or support choosing the right version of this machine, call us on 01243 55 55 25, option 1 for sales support, or email sales@a-f.co.uk.
