Miele PFD 404 (WB Hygiene)
Hygiene dishwasher & Fresh Water Dishwasher
Miele PFD 404 Hygiene fresh-water dishwasher for care, healthcare and hygiene-sensitive environments needing dependable high-temperature dishwashing in a compact footprint.
- ✓Fresh-water dishwashing system
- ✓Hygiene-focused programme set
- ✓High-temperature final rinse
- ✓Stainless steel construction
- ✓Suitable for care and healthcare use
Fri 8.30am–5pm
Use the button below and we’ll call you back.
Product Overview

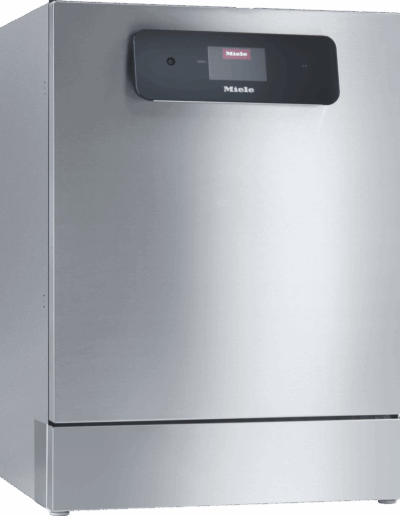

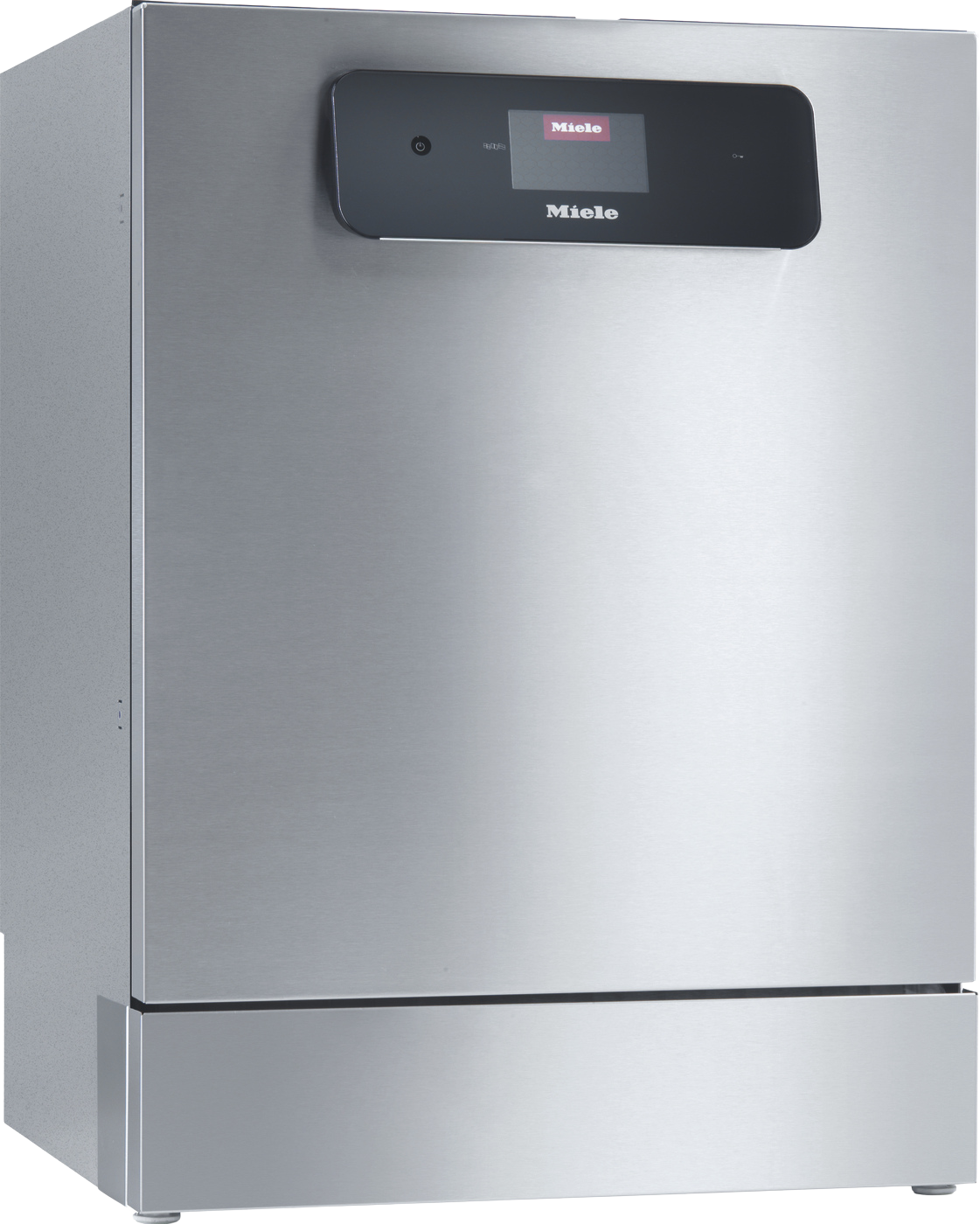

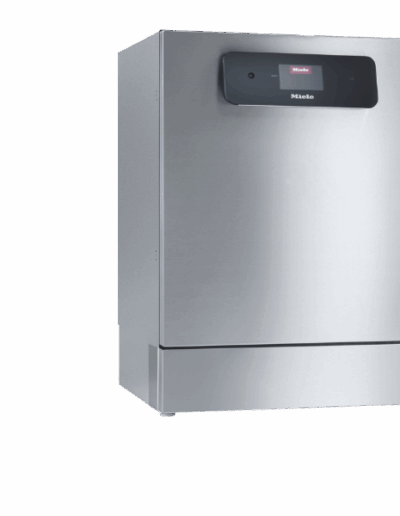

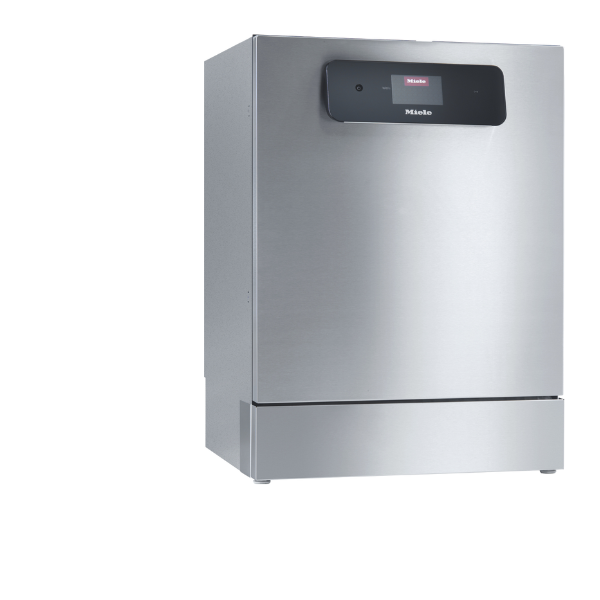

The Miele PFD 404 [WB Hygiene] is a freestanding fresh-water commercial dishwasher from the Miele MasterLine range, built for sites where hygiene performance, staff confidence and reliable daily dishwashing are essential.
It is available in stainless steel and Lotus white finishes, with 230v and 400v power options depending on the variant. The 400v stainless steel model offers up to 456 plates per hour or 24 baskets per hour, while the 230v variants offer up to 380 plates per hour or 20 baskets per hour. Miele’s shortest advertised programmes depend on site conditions, especially incoming water temperature, water pressure and the electrical supply.
This model is particularly well suited to care homes, healthcare environments, nurseries, canteens, hospitality sites and other locations where a dishwasher needs to support high standards of hygiene. The PFD 404 Hygiene includes Miele’s fresh-water wash system, an 85°C final rinse, dedicated Hygiene programmes and tested hygiene documentation for supported applications.
At a glance
820(h) x 598(w) x 598(d)
230v or 400v, variant dependent
Fresh-water system with 85°C final rinse
How a&f can support you
Buying commercial dishwashing equipment is about more than choosing the machine. We help you get the right Miele solution for your site from day one, and support you long after it is installed.
We can help with site survey, correct variant selection, supply, installation, commissioning, user training and long-term service support. For this model, we can also help assess realistic cycle times for your site based on your services and water temperature.
- ✓ Manufacturer-trained engineers
- ✓ Around £12,000 of spare parts carried on each service van
- ✓ Warranty handling, annual servicing and service contracts
- ✓ Rental and finance options available alongside outright purchase
Need this machine supplied, installed and supported?
Speak to a&f about purchase, rental, installation and service contract options for this product. Call us on 01243 55 55 25, option 1 for sales support, email sales@a-f.co.uk, or click the green button.
Features and buyer benefits
A practical overview of the features that matter most in daily use, including hygiene performance, throughput, controls, dosing, water treatment, connectivity and staff confidence.
Fresh-water system
High hygiene assurance with repeated water changes
The fresh-water wash system supports consistent cleaning and hygiene by using fresh water during the programme rather than relying on a retained tank system.
Hygiene performance
85°C final rinse for demanding environments
The PFD 404 Hygiene is designed for locations with high hygiene requirements, with dedicated Hygiene programmes and a high final rinse temperature.
Tested hygiene
Hygiene certificate available for this model
The additional hygiene certificate gives care, healthcare and similar sites useful supporting documentation for their dishwashing process.
Throughput
Up to 456 plates per hour on the 400v model
The 400v stainless steel variant offers the highest throughput in this group, while the 230v variants provide up to 380 plates per hour where single-phase power is required.
Cycle speed
Short advertised programmes, subject to services
Miele lists shortest programme durations of 5 minutes on the 400v version and 6 minutes on the 230v versions, but real-world cycle times depend on incoming water temperature, pressure and power supply.

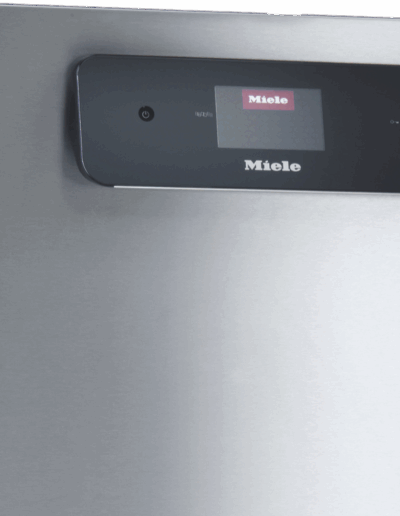

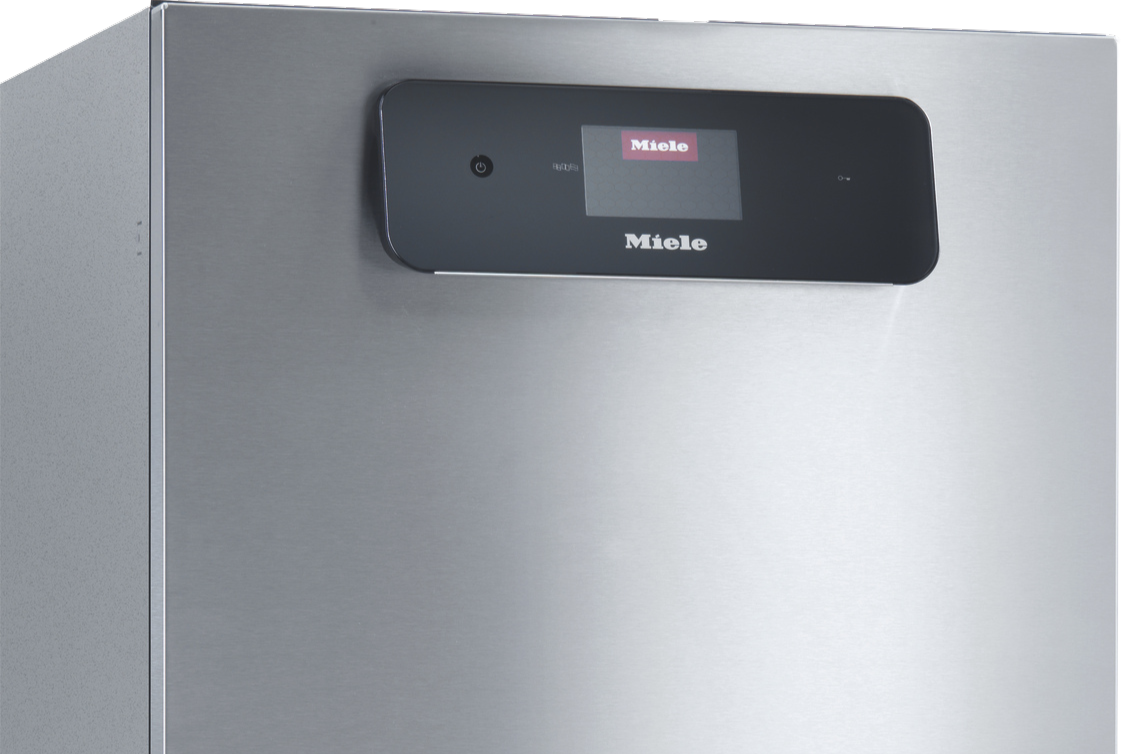

M Touch Flex
Clear colour touchscreen operation
The M Touch Flex interface helps staff choose programmes confidently, with clear programme information and time-left display.
AutoOpen drying
Automatic door opening at programme end
AutoOpen assisted drying helps improve drying results and supports a clear staff routine once the programme has finished.
Integrated softener
Built-in water softening for better results
The integrated water softener supports wash quality and machine protection in hard-water areas, helping maintain consistent results when correctly maintained.

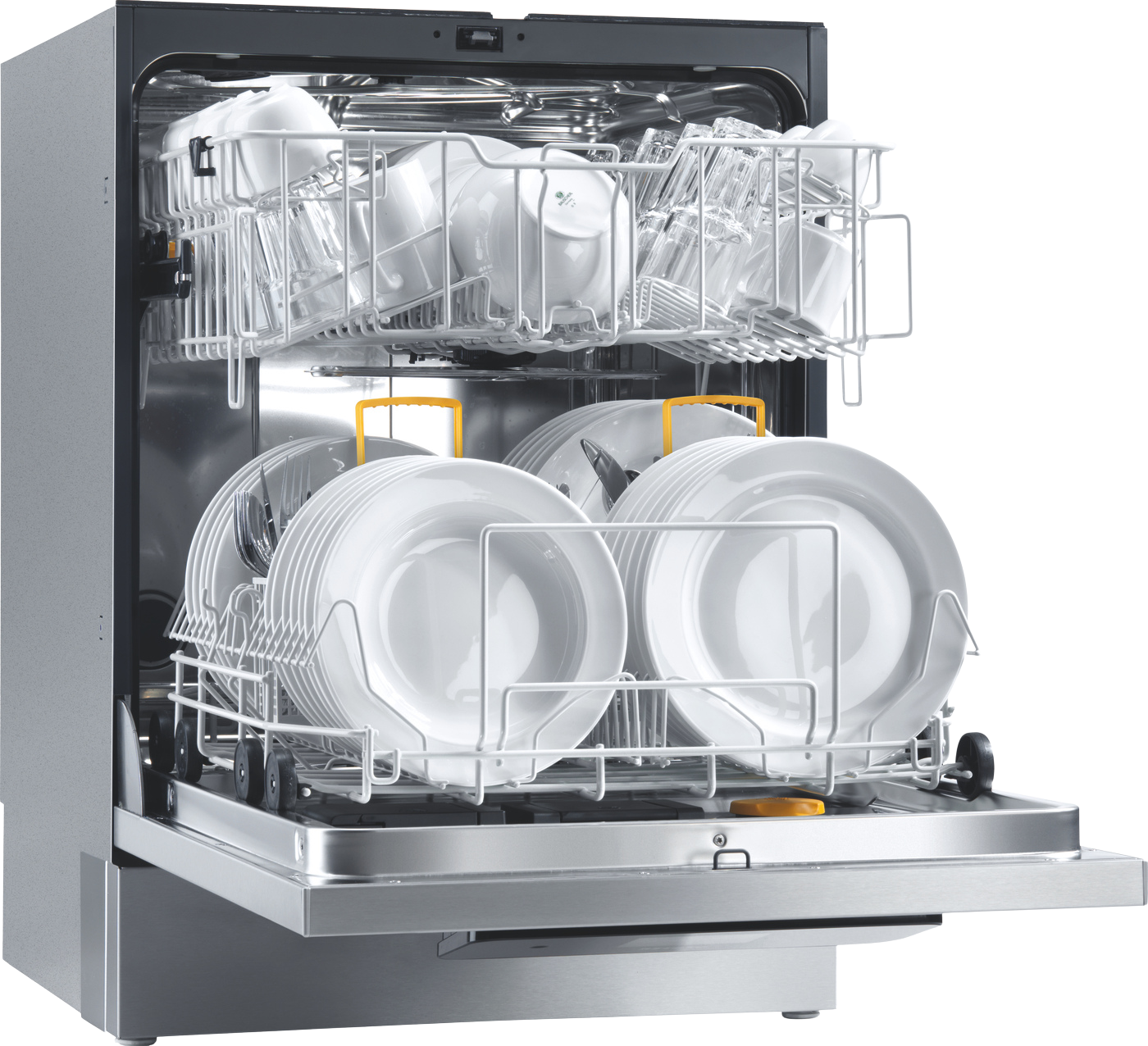

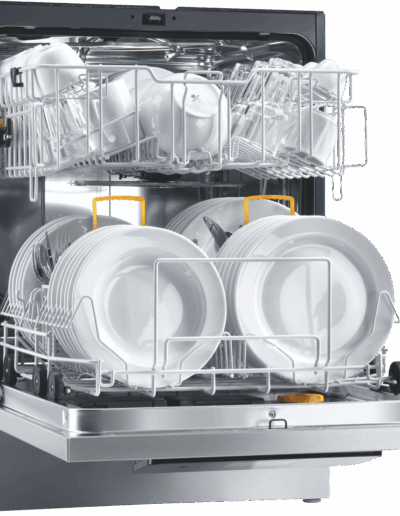

Two-level loading
Flexible loading for crockery and accessories
The cabinet and basket system support washing on two levels, with optional accessories for items such as bottles, medication cups and specialist loads.
Dosing options
External dosing module connections available
Optional connections for liquid detergent and rinse aid modules can help sites improve consistency and simplify chemical management.
Miele MOVE
Network-enabled for digital machine management
WiFi connectivity and Miele MOVE compatibility allow supported machine data to be accessed digitally, helping managers monitor compatible Miele Professional equipment.
Variant choice
Stainless steel or white, 230v or 400v
The PFD 404 Hygiene can be specified to suit the environment, available services and finish preference, with a&f able to check the most suitable version before ordering.
Technical specifications
Key technical details for the Miele PFD 404 [WB Hygiene] commercial dishwasher, including variant options, dimensions, power, water, wash performance, dosing, controls and hygiene features.
| Model | Miele PFD 404 [WB Hygiene] |
|---|---|
| Range | Miele MasterLine |
| Product type | Freestanding fresh-water commercial dishwasher |
| Wash system | Fresh-water front loader |
| Number of baskets | 2 |
| Available finishes | Stainless steel or Lotus white, variant dependent |
| 12066240 | Stainless steel, 400v, 16A, 8.90 kW, up to 456 plates/hour |
|---|---|
| 12066190 | Stainless steel, 230v, 32A, 5.90 kW, up to 380 plates/hour |
| 12066200 | Lotus white, 230v, 32A, 5.90 kW, up to 380 plates/hour |
| Lower power options | The 230v product sheets also list 13A and 16A possible voltage variants. Final specification should be checked before ordering. |
| External dimensions | H 820 mm W 598 mm D 598 mm |
|---|---|
| Height with lid | 835 mm |
| Height adjustment | Up to 60 mm |
| Required niche width | 600 mm |
| Net weight | 78 kg |
| In-feed height | 216 mm above floor level |
| Power Required | 230v or 400v, variant dependent |
|---|---|
| 400v version | 3N AC 400V, 16A, 8.90 kW connected load |
| 230v version | AC 230V, 32A, 5.90 kW connected load |
| Water connections | Cold water and hot water connections |
| Flow pressure | 1.00-10.00 bar |
| Drainage | Drain pump, DN 22, max. head height 100 cm from floor level |
| Water consumption | 8.00 litres per wash cycle |
| Shortest programme | 5 min on 400v model, 6 min on 230v models, based on suitable site conditions |
|---|---|
| 400v throughput | Up to 456 plates/hour or 24 baskets/hour |
| 230v throughput | Up to 380 plates/hour or 20 baskets/hour |
| Final rinse temperature | Up to 85°C |
| Circulation pump | Qmax 390 l/min |
| Service life | Miele tested figure: 28,000 wash cycles |
Cycle times and throughput depend on site services, especially incoming water temperature, water pressure and the power supply. a&f can assess your services and advise on realistic performance for your environment.
| Control system | M Touch Flex colour touchscreen |
|---|---|
| Programmes | 12 programmes, including Hygiene and Hygiene plus |
| Delay start | Up to 24 hours |
| Connectivity | WiFi, network-enabled with Miele MOVE |
| Dosing | Combi dispenser in the door, optional external detergent and rinse aid dispensing modules |
| Softener | Integrated water softener |
| Compliance | CE, UKCA, DIN 10512, DIN EN 17735, Regulation 4 compliant, tested virucidal efficacy and proven hygiene |
Choosing the right machine
Is the Miele PFD 404 [WB Hygiene] the right model for me?
The Miele PFD 404 [WB Hygiene] is a strong choice where a site needs a compact undercounter-style commercial dishwasher with enhanced hygiene capability, fresh-water washing and documented hygiene performance.
It is particularly relevant for care homes, healthcare environments, nurseries, staff canteens, hospitality sites and other locations where staff need a reliable dishwasher that supports a controlled hygiene process.
When is this dishwasher a good fit?
This model is a good fit where the site needs more than a basic commercial dishwasher and wants a machine with hygiene-focused programmes, a fresh-water system and clear staff operation.
- Suitable for care homes, healthcare sites, nurseries, canteens and hygiene-conscious hospitality environments.
- Useful where a fresh-water dishwasher is preferred over a retained-tank system.
- Suitable where an 85°C final rinse and Hygiene programmes are required.
- Good for sites needing a freestanding front-loading machine with two wash levels.
- Available in 230v and 400v options, subject to variant and site services.
What should I check before choosing this model?
The main checks are power supply, water pressure, water temperature, drainage, available space, water hardness and the site’s actual dishwashing demand.
- Confirm whether the site has a suitable 230v or 400v electrical supply for the chosen variant.
- Check incoming water temperature and pressure, as these affect cycle times.
- Confirm drainage can support the drain pump arrangement and hose route.
- Check whether the site needs stainless steel or Lotus white finish.
- Confirm whether external chemical dosing is required.
- Check whether the built-in water softener and site water treatment arrangement are suitable for the local water hardness.
When might another dishwasher be better?
Another dishwasher may be better if the site needs higher throughput, faster continuous washing, a pass-through layout, or a simpler non-hygiene machine.
- Choose a larger tank or pass-through dishwasher where continuous high-volume washing is the main priority.
- Consider a Miele PTD or larger commercial dishwasher where the site regularly exceeds the PFD 404’s basket throughput.
- Consider a simpler model where the site does not need Hygiene programmes or documented hygiene performance.
- For very small offices or light domestic-style use, a smaller PFD model may be more appropriate.
- For specialist healthcare washing, check the load type and process carefully before specifying the machine.
Services, utilities and installation checks
The PFD 404 Hygiene is service-sensitive, especially where customers are comparing advertised shortest programme times. Miele’s published 5-minute and 6-minute figures depend on suitable incoming water temperature, water pressure and power supply.
- 400v stainless steel version: up to 456 plates/hour or 24 baskets/hour, shortest advertised programme 5 minutes.
- 230v stainless steel and white versions: up to 380 plates/hour or 20 baskets/hour, shortest advertised programme 6 minutes.
- Water connections: hot and cold water.
- Required flow pressure: 1.00-10.00 bar.
- Drainage: drain pump DN 22, with maximum head height of 100 cm from floor level.
- a&f can assess your services and advise on realistic cycle times for your environment.
Replacing an older model?
The PFD 404 Hygiene is relevant when replacing older Miele thermal disinfection or hygiene-focused commercial dishwashers. The most important checks are the available services, basket setup, water treatment, drainage and the hygiene process required by the site.
If an existing machine has been relied on for a specific hygiene process, a&f should confirm the new model, programme selection, site routine and any supporting documentation before replacement.
This model may be relevant when replacing or searching for older Miele models including PG8059, G7859TD, G7762 and G7702.
Compliance, hygiene and environment
The PFD 404 Hygiene is specifically positioned for sites with high hygiene requirements. It has tested virucidal efficacy, proven hygiene, Hygiene programmes, a high final rinse temperature and supporting hygiene documentation.
- Fresh-water system supports hygiene by using repeated water changes.
- Maximum final rinse temperature is listed as 85°C.
- Datasheet standards include DIN 10512, DIN EN 17735, UKCA, CE and Regulation 4 compliance.
- Thermal disinfection and hygiene outcomes still depend on correct programme use, loading, detergent, rinse aid, water quality and staff procedure.
- a&f can help review the full dishwashing process for care, healthcare and other hygiene-sensitive environments.
Need help checking suitability?
Contact us for a free specification check or site visit before ordering. Call us on 01243 55 55 25, option 1 for sales support, or email sales@a-f.co.uk.
Product downloads
Helpful documents for this machine
Download the key documents for the Miele PFD 404 [WB Hygiene] commercial dishwasher below. These include the product sheets for the available variants, operating instructions and the hygiene certificate. If you need installation guidance, compliance information or help confirming the right version for your site, contact a&f and we will be happy to help.
Miele product sheet, stainless steel 400v
Product information for the stainless steel 400v version, including dimensions, power requirements, throughput, water connection and hygiene features.
Miele product sheet, stainless steel 230v
Product information for the stainless steel 230v version, including electrical options, water connection, drainage, controls and programme information.
Miele product sheet, white 230v
Product information for the Lotus white 230v version, including dimensions, power, drainage, programmes, controls and hygiene features.
Miele operating instructions
Manufacturer guidance covering operation, programmes, cleaning, routine care, safety information and user instructions for the PFD 404 dishwasher.
Miele hygiene certificate
Supporting hygiene documentation for the PFD 404 Hygiene model, useful for care, healthcare and other hygiene-sensitive environments.
