This model is a good fit where you need a complete wash and dry solution but do not have enough floor space for two side-by-side machines.

• Check that a 9kg washer and 9kg dryer capacity is suitable for your daily laundry volume.
• Allow for the full stacked height of 1940mm, plus practical access for loading, unloading and servicing.
• Confirm that the site can provide two separate 230v, 25A electrical supplies.
• Confirm that the washer drain pump connection and dryer exhaust duct route are both suitable.
• Check that staff can comfortably reach and use the central control position.

The washer side uses a drain pump, while the dryer side is an exhaust air dryer. That means this model needs more installation planning than a washer-only product.

• The washer requires hot and cold water connections.
• The washer uses a drain pump with DN22 drainage.
• The dryer requires a correctly designed exhaust duct route to atmosphere.
• Make-up air must be considered so the dryer can work efficiently and safely.
• Programme times and energy use will depend on site services, load type, programme choice and installation conditions.

a&f should check the proposed location before installation, especially where the machine is being installed in a cupboard, utility room, basement, plant area or any space with limited airflow.

The PDW 909 is best suited to smaller commercial and managed laundry areas where reliability, hygiene, capacity and space saving all matter.

• Care homes and supported living environments with regular daily laundry.
• Hotels, B&Bs and hospitality sites with limited laundry room space.
• Schools, nurseries, sports clubs and fitness facilities.
• Residential accommodation, shared laundry rooms and small launderettes.
• Salons, spas, clinics and other businesses needing a compact professional laundry setup.

For larger laundry volumes, multiple separate washers and dryers may be a better solution because they normally provide higher total throughput and more operational flexibility.

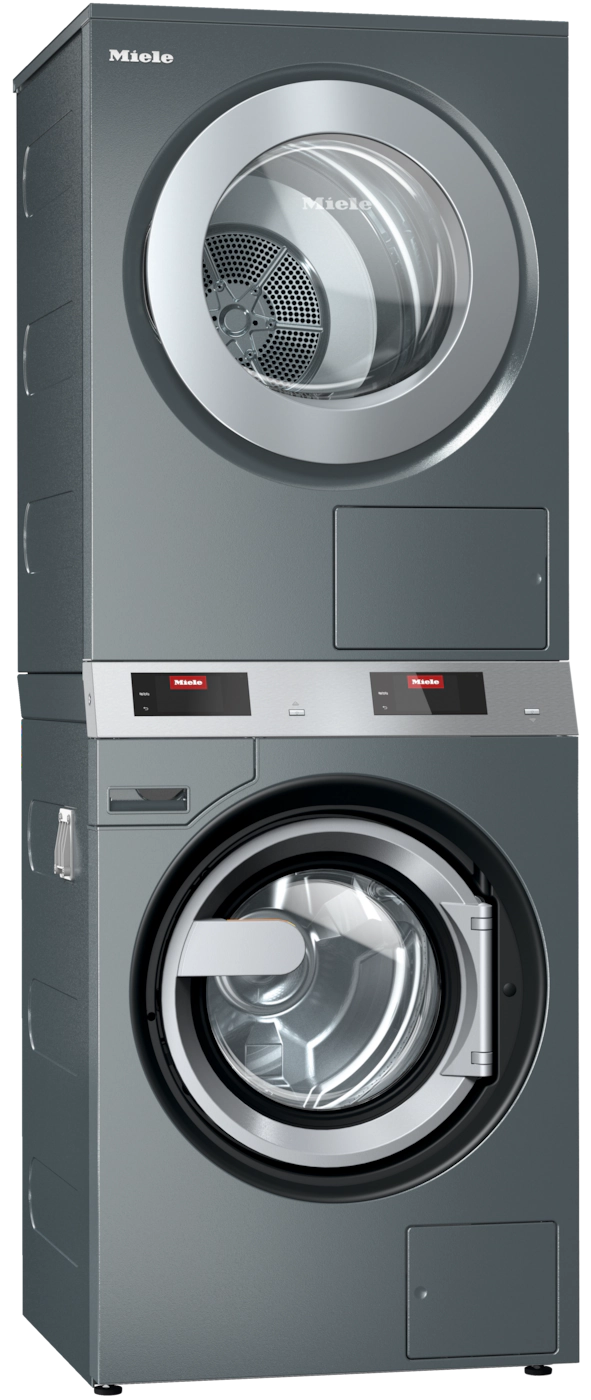

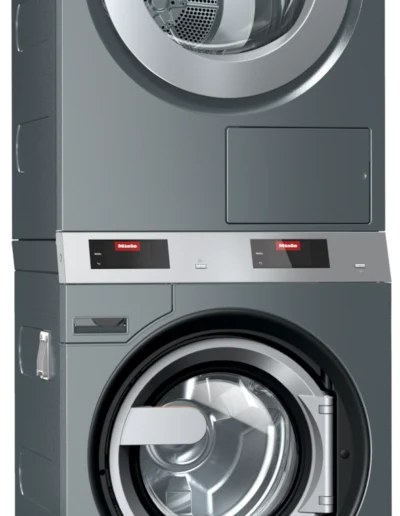

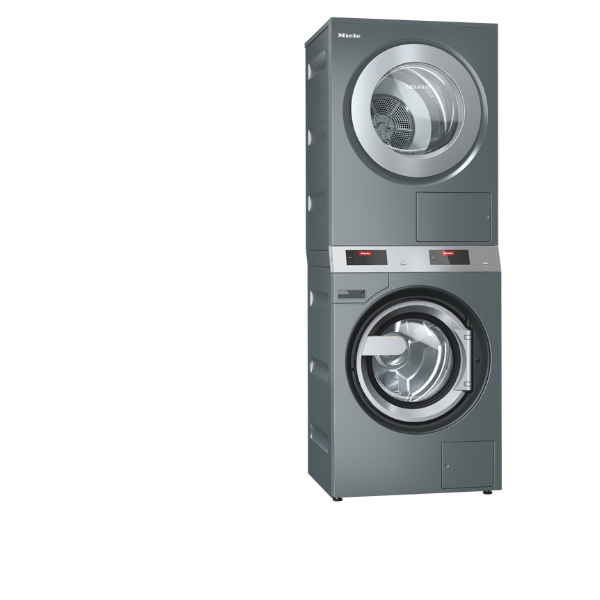

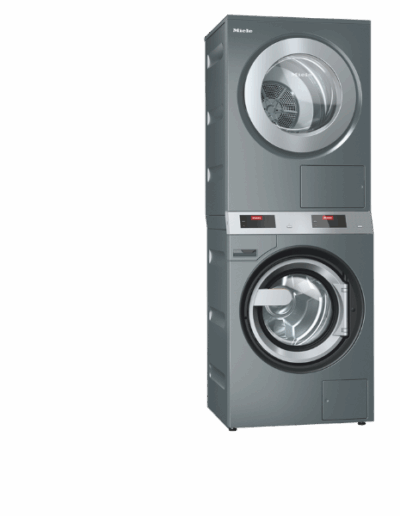

The Miele PDW 909 EL DP DD is the current compact professional washer-dryer stack option for customers replacing older Miele stacked washer-dryer units.

• It is a relevant replacement option for older Miele PWT6089 installations.
• The PDW 909 offers a 9kg washer and 9kg dryer, compared with older compact stacked models that may have lower capacity or older controls.
• Services should be checked carefully because power, drainage, water connections and dryer ventilation may not match the existing installation exactly.
• If replacing an older Miele stack, a&f can check the existing space, ducting, supplies and drainage before recommending the correct current model.

This is not always the best option, even where space is tight. The right choice depends on capacity, services, ventilation and how the laundry is used day to day.

• Choose a larger washer and dryer if your site regularly processes heavy laundry volumes.
• Consider separate machines if you need to wash and dry multiple loads at the same time.
• Consider a heat pump dryer where external ducting is not possible, provided the site and workload suit heat pump operation.
• Consider a drain valve washer where the site requires a different drainage arrangement or specific sluice-type processes.
• Check carefully before using this model for specialist infection control laundry requirements.

The washer includes hygiene-focused features such as disinfection rinse, temperature monitoring and proven hygiene functionality. It also supports liquid dosing, helping sites run more consistent processes.

• Up to 6 liquid dosing connections can support controlled detergent use.
• The 3-compartment detergent drawer allows straightforward manual dosing where needed.
• Optional payment connection makes the stack suitable for shared or chargeable laundry settings.
• LAN and WiFi connectivity support Miele MOVE for compatible connected laundry management, including machine status, consumption data, operating information, notifications and remote service support where available.

In care, healthcare or veterinary environments, the exact laundry process should be reviewed before purchase so the machine, programmes, dosing and operating routine match the site’s hygiene requirements.
