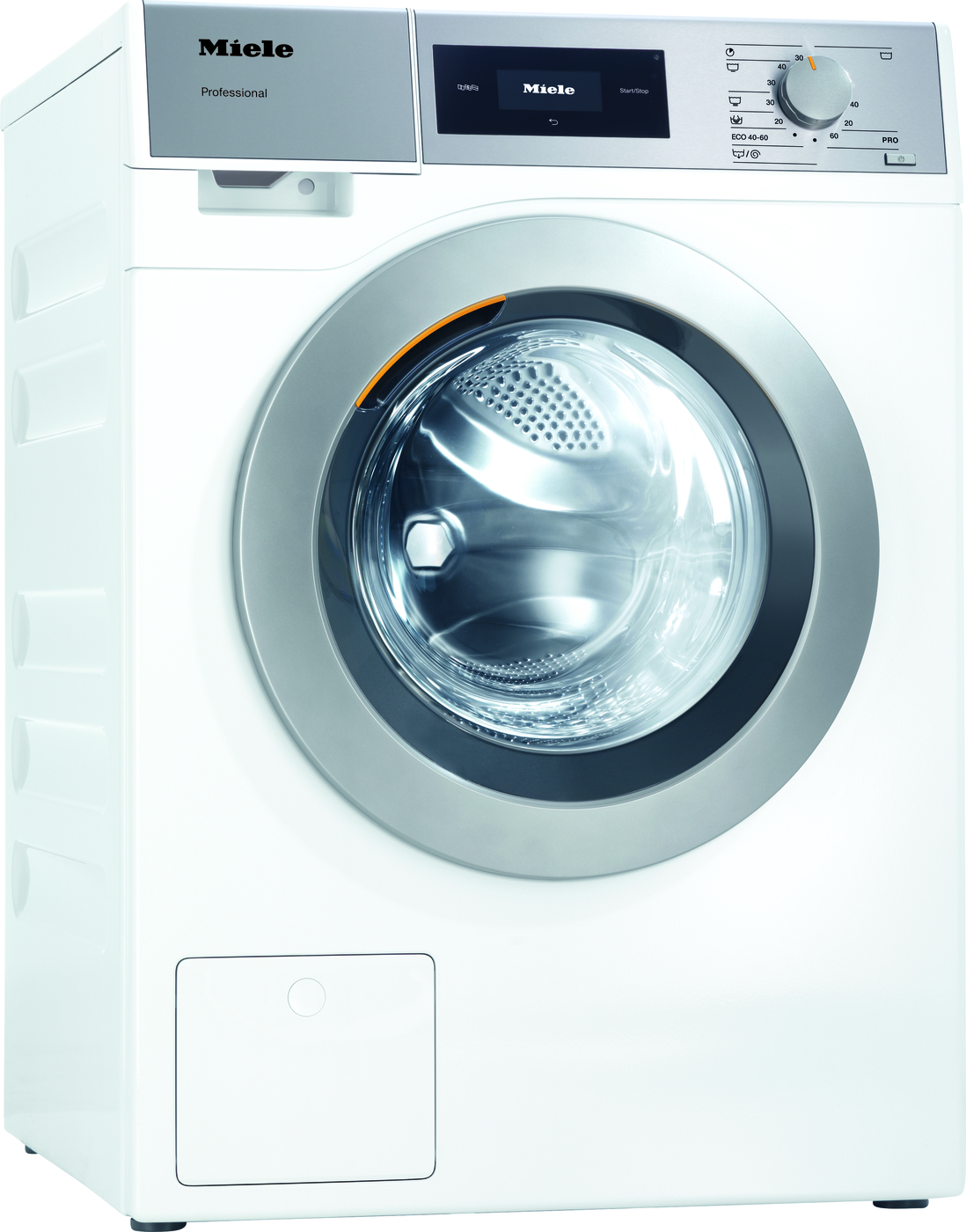

Miele PWM 307 Commercial Washing Machine

Compact 7kg professional washer with 13A power and drain-pump installation.

The Miele PWM 307 is a compact commercial washing machine for private homes and organisations needing dependable professional laundry performance from a standard electrical supply.

  • ✓7kg capacity and 64-litre honeycomb drum for everyday clothing, towels and bedding
  • ✓1,600rpm final spin helps reduce subsequent tumble-drying time
  • ✓Compact 596mm width suits smaller laundry rooms and standard-width spaces
  • ✓230v 13A connection avoids the need for a higher-rated electrical supply
  • ✓DN22 drain pump connects to a suitably positioned trapped waste
Call Back
Talk to an expert today
Our team can advise on the best solution for your unique setup – and we’ll come out to see you for FREE.
01243 55 55 25
Our office hours are
Mon–Thu 8.30am–5.30pm
Fri 8.30am–5pm
Outside office hours?
Use the button below and we’ll call you back.
Request a call back

Product Overview

The Miele PWM 307 EL DP-1 is a 7kg professional front-loading washing machine from the Little Giants Evolution range, designed for standard commercial laundry and professional laundry within the home.

Its 64 litre honeycomb drum, 1,600rpm maximum spin speed and 704 g-factor provide effective washing and strong water extraction within a machine measuring less than 600mm wide. Lower residual moisture can reduce the time and energy required by the accompanying tumble dryer.

This drain-pump model uses a 230v, 13 amp electrical connection and a single cold-water inlet. It is best suited to everyday laundry where large debris, animal hair and heavy contamination are not expected.

Suitable applications for this machine include Private Residences & Estates, Hotels & B&Bs, Sports Clubs, Schools, Colleges & Universities, Nurseries and Architects & Building Design, as well as many others.

At a glance

✓
Dimensions (in mm): 850(h) x 596(w) x 714(d)
✓
Power Required: 230v, 13 amp, 2.5kW connected load
✓
Drain Type: DN22 drain pump

How a&f can support you

Buying commercial laundry equipment is about more than choosing the machine. We help you get the right Miele solution for your site from day one, and support you long after it is installed.

We can help with site survey, correct variant selection, supply, installation, commissioning, user training and long-term service support.

  • ✓ Manufacturer-trained engineers
  • ✓ Around £12,000 of Miele spare parts carried on each service van
  • ✓ Warranty handling, annual servicing and service contracts
  • ✓ Rental and finance options available alongside outright purchase
Miele Professional UK No.1 Partner 2025 - a&f

Need this machine supplied, installed and supported?

Speak to a&f about purchase, rental, installation and service contract options for this product. Call us on 01243 55 55 25, option 1 for sales support, email sales@a-f.co.uk, or click the green button.

Features & Benefits

Key features of the Miele PWM 307 DP, focused on compact professional performance, straightforward installation, efficient extraction and dependable everyday use.

Compact professional capacity

7kg load with a 64-litre honeycomb drum

Provides professional washing performance for clothing, towels and bedding without requiring the space of a larger-capacity washer.

High-speed extraction

Up to 1,600rpm with a 704 g-factor

Removes more moisture before drying, helping shorten tumble-drying times and improve overall laundry turnaround.

Standard electrical supply

230v single-phase, 13A and 2.5kW

Allows professional laundry equipment to be installed without requiring a higher-rated three-phase electrical connection.

Flexible pumped drainage

DN22 drain pump

Connects to a suitably positioned trapped waste and avoids the need for the low-level gravity drain required by a drain-valve model.

Honeycomb drum

64-litre stainless-steel drum

Supports effective wetting and gentle textile movement to help protect frequently washed clothing, towels, bedding and sportswear.

Professional durability

Tested to 30,000 operating hours

Miele’s controlled laboratory testing supports confidence for frequent professional use, subject to correct operation and maintenance.

Automatic load recognition

Water use adapts to the load in suitable programmes

Helps avoid using full-load water quantities when smaller loads are washed, supporting more efficient everyday operation.

Simple M Select controls

Clear programme selection and time display

Straightforward controls help different users select programmes confidently and reduce avoidable operating errors.

Programmable operation

Supervisor-level programme settings

Selected settings can be configured around the textiles, detergent process and working practices of the site.

Flexible installation

Freestanding, under-counter or stackable

Can suit different laundry-room layouts and stack with a compatible Miele Professional dryer where floor space is limited.

Detergent flexibility

Three-compartment drawer with CapDosing

Supports conventional detergent, fabric conditioner and suitable Miele portioned products for different textile requirements.

Connected laundry

WiFi fitted with optional LAN and Miele MOVE

Compatible digital services can provide machine status, notifications and operating information where correctly configured.

Technical specifications

Technical and installation details for the Miele PWM 307 EL DP-1 drain-pump washing machine. Confirm the available electrical supply, cold-water service, waste position and installation arrangement before ordering.

1. Core product details
ModelPWM 307 EL DP-1
Material number11693340
Load capacity7kg
Drum volume64 litres
Heating and drainElectric heating with drain pump
Machine finishLotus white
2. Size & Installation
Dimensions850 H × 596 W × 714 D mm
Net weight98kg
Door opening300mm diameter
Door hingeRight
Installation optionsFreestanding, beneath a suitable worktop or stacked with a compatible Miele Professional dryer
Floor requirementFirm, level and structurally suitable floor capable of supporting the machine during extraction
3. Power
Power Required230v 13A
Connected load2.5kW
Heater rating2.3kW
Electrical supply230v single-phase, 50Hz
ConnectionDedicated suitable 13A socket or connection installed in accordance with current regulations
Heating typeElectric
4. Water, Drainage & Extraction
Water supplyCold-water connection
Inlet connection¾-inch threaded connection
Machine drain outletDN22 drain pump
Site wasteSuitably positioned trapped waste capable of accepting pumped discharge
Maximum spin speed1600rpm
g-factor704
5. Programmes & Efficiency
Shortest stated programme69 minutes
Residual moistureApproximately 48% with cold final rinse under stated test conditions
Eco 40-60 water use37 litres per cycle under stated test conditions
Cottons 60°C water use49 litres under stated test conditions
Detergent drawer3 compartments
CapDosingSupported for suitable Miele portioned detergents and additives
6. Controls & Connectivity
Control systemM Select
ProgrammabilityProgrammable supervisor settings
Delay startUp to 24 hours
WiFiFitted
LANOptional module
Miele MOVECompatible where configured and connected to a suitable network
Tested durability30,000 operating hours under controlled Miele test conditions, not a guaranteed service life

Choosing the right machine

Is this the right model for your property or business?

Choosing the right commercial laundry or dishwashing equipment is not only about the model itself. The correct choice depends on how the machine will be used, the services available, the installation layout, compliance requirements and the level of support needed after installation.

At a&f, we help customers check these details before supply, so the machine is specified correctly and installed with the right long-term support in place.

What should I check before purchasing this machine?

The upfront price of a machine is only one part of the decision. In commercial laundry and dishwashing, the long-term cost of ownership can be significantly higher than the purchase price, especially when energy use, water use, detergent, staff time, reliability, downtime and service support are taken into account.

The best value normally comes from choosing equipment that is correctly specified for the way it will actually be used. Capacity is important, but so are the services available, the installation layout, the programmes required, the environment it will operate in and the support available after installation.

Before purchasing this machine, it is worth asking:

  • Does this machine have the right programmes for how it will actually be used?
  • Are the power supply, drainage, ventilation and access suitable for this model?
  • Will it fit the existing space, plinth, stacking kit or installation layout?
  • What service support will be available after installation?

At a&f, we help customers check these details before supply, so the equipment is correctly specified from the start. A specification check or site visit can help confirm whether this is the right machine for the property, operation or environment before you commit to an order.

Need help checking suitability? Contact us for a free specification check or site visit before ordering. Contact us
Services, drainage and cycle times

Advertised cycle times are normally based on favourable test conditions and the correct services being available. They can be achievable, but the actual cycle time may vary depending on the machine type, selected programme, load size and the services connected to the machine.

For laundry and dishwashing equipment, factors such as power supply, water pressure, incoming water temperature, drainage, ventilation, heat recovery and installation layout can all affect performance and cycle speed.

If cycle time is important, we can help you understand the difference between best-case advertised times and realistic operating times for your installation, so the equipment is specified around how it will actually be used.

Replacing an older model?

This model may be suitable as a replacement for several earlier Miele Professional Little Giants washing machines, particularly where a compact commercial washer with a drain pump is required.

Common former models this machine may replace:

  • PW 6055 DP – earlier Little Giants drain pump model
  • PW 6065 DP – earlier Little Giants drain pump model
  • WS 5425 – older Miele Professional Little Giants washer

Older model numbers do not always translate directly to a like-for-like replacement. The correct choice still depends on the existing machine, drain type, power supply, available space, plinth or stacking arrangement, controls, programme requirements and how the laundry is used.

If you are replacing one of these machines, we can check the existing model, services and installation layout before confirming the most suitable current replacement.

Compliance, hygiene and environment

Different environments have different hygiene, safety and compliance requirements. Care, healthcare, veterinary, education, hospitality, food service, communal laundry and high-use commercial environments may all need different machine specifications.

For laundry, this can include thermal disinfection programmes, sluice or foul laundry requirements, suitable drainage, correct programme options, dirty-to-clean workflow and infection-control considerations. In care and healthcare environments, guidance such as HTM 01-04, Health Technical Memorandum 01-04, may also be relevant depending on the setting, laundry use and level of risk.

For dishwashing, this can include high-temperature final rinse performance, simple operation, reliable wash results and selecting the correct machine type for the hygiene requirement. Some dishwashers and programmes, such as the Miele PFD 404 Hygiene, can achieve thermal disinfection where correctly specified and used. Classeq dishwashers use a high-temperature final rinse that supports hygienic wash results, but this should not be treated as guaranteed thermal disinfection.

Where water regulations apply, the correct product and installation must be selected. The key legal requirement is compliance with Regulation 4 of the Water Supply (Water Fittings) Regulations 1999. Compliance may be demonstrated through recognised approval or certification routes such as WRAS, Water Regulations Approval Scheme, Kiwa UK Regulation 4 certification, KUKreg4, or NSF REG4 certification.

The key point is not simply whether an approval mark is present, but whether the equipment, installation method and backflow protection are suitable for the environment, the water risk category and the way the machine will be used.

Read more in our infection control guide and water regulations guide.

Product downloads

Helpful documents for this machine

Download the main documents for this product below. These include the Miele product sheet and operating instructions. If you need installation guidance, compliance information or help confirming whether this is the right machine, contact a&f and we will be happy to help.

PDF
Miele product sheet

Key product information including capacity, dimensions, power requirements, drainage details and core features.

PDF
Miele operating instructions

Manufacturer guidance covering operation, programme use, routine care, cleaning and user instructions for this machine.

Need another document or more product information?

If you need installation instructions, compliance documents, user training guidance or support choosing the right version of this machine, we will be happy to help. Call us on 01243 55 55 25, option 1 for sales support, or email sales@a-f.co.uk.
