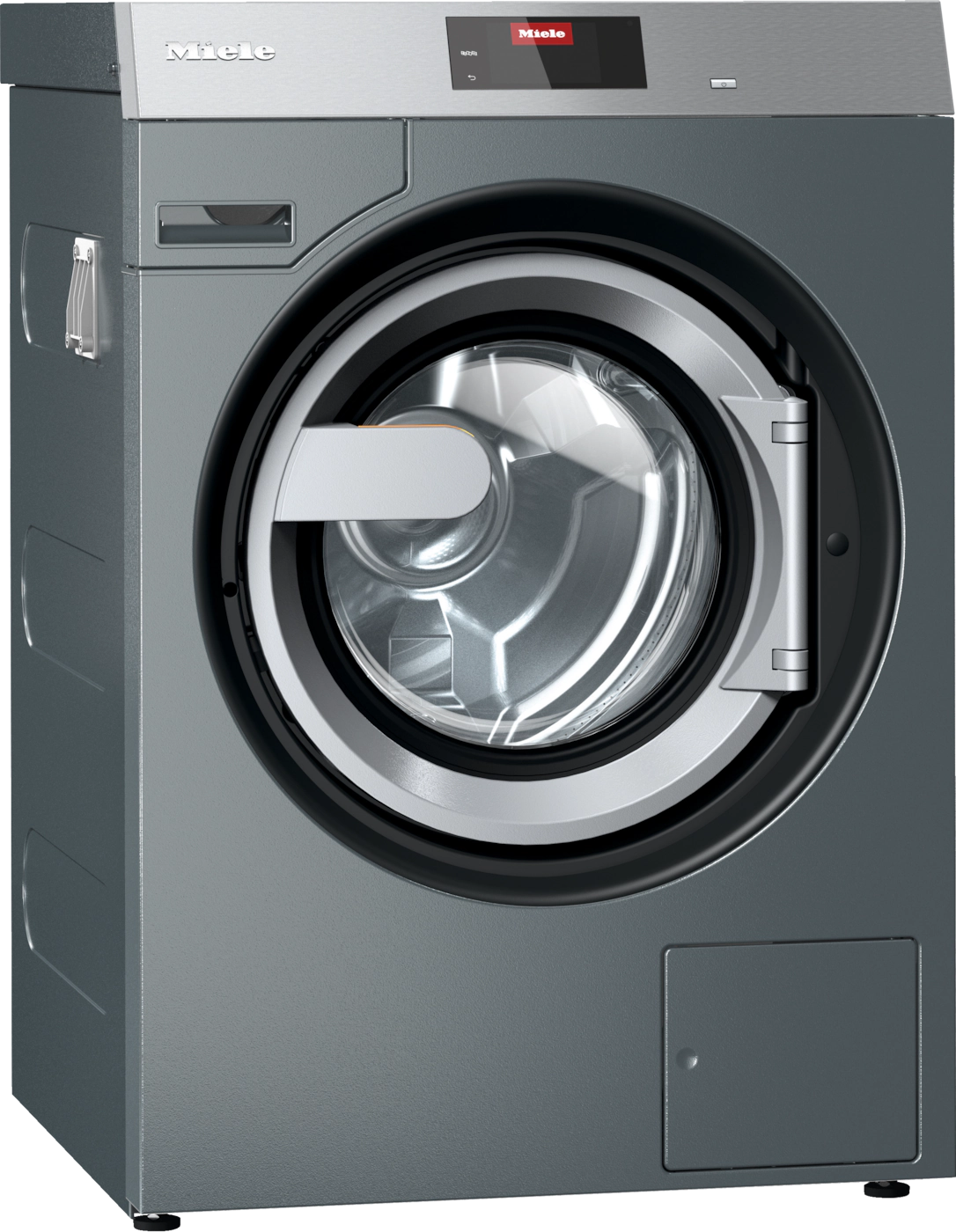

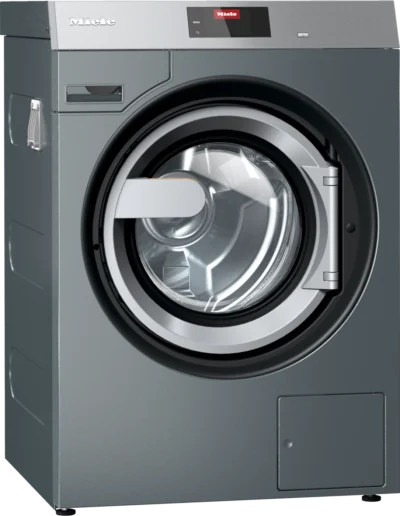

Miele PWM 509 Mop Star
9kg professional mop washer with 80 litre drum
Miele PWM 509 Mop Star is a professional washing machine for facilities management and contract cleaning sites, built to process mops, cleaning cloths and workwear with efficient, easy-to-use programmes.
- ✓9kg load with 80 litre drum for mop, cloth and workwear batches
- ✓Specialist programmes help clean and prepare mops and cloths
- ✓Disinfection rinse and temperature monitoring support hygiene routines
- ✓44% residual moisture helps reduce drying time and energy use
- ✓M Touch Pro controls help staff choose the right programme easily
Fri 8.30am–5pm
Use the button below and we’ll call you back.
Product Overview
The Miele PWM 509 Mop Star [EL DV DD] is a 9kg professional front-loading washing machine from the Miele Performance range, built for facilities management and contract cleaning sites processing mops, cloths and workwear.
It combines an 80 litre drum, specialist mop and cloth programmes, M Touch Pro controls, drain valve drainage and strong high-spin extraction to support efficient daily cleaning-led laundry routines.
It is a strong choice for cleaning contractors, facilities teams, schools, healthcare support areas, leisure sites and commercial environments where mops and cleaning cloths need to be washed, rinsed, prepared and returned to use consistently.
At a glance
1020(h) x 704(w) x 730(d)
230v, 25A
Drain valve, DN 70
How a&f can support you
Buying commercial laundry equipment is about more than choosing the machine. We help you get the right Miele solution for your site from day one, and support you long after it is installed.
We can help with site survey, correct variant selection, supply, installation, commissioning, user training and long-term service support.
- ✓ Manufacturer-trained engineers
- ✓ Around £12,000+ of spare parts carried on each service van
- ✓ Warranty handling, annual servicing and service contracts
- ✓ Rental and finance options available alongside outright purchase
Need this machine supplied, installed and supported?
Speak to a&f about purchase, rental, installation and service contract options for this product. Call us on 01243 55 55 25, option 1 for sales support, email sales@a-f.co.uk, or click the green button.
Features and buyer benefits
A practical summary of the features that matter most for facilities teams, contract cleaners and commercial sites using a professional mop and cloth washer every day.
Capacity
9kg load with an 80 litre drum
A useful mid-size capacity for mop heads, cleaning cloths and workwear without moving into a larger footprint than many sites need.
Mop Star programmes
Built for facility management laundry
Specialist programmes support the daily washing and preparation of mops and cleaning cloths, alongside standard workwear laundry.
Cloth preparation
Cloths can be processed and prepared in one step
Helps cleaning teams return cloths to use efficiently, supporting consistent routines across facilities management operations.
Pre-spin
Cleaning cloths are rinsed before the wash starts
Miele’s patented pre-spin helps remove loose soiling at the beginning of the process, supporting better cleaning results.
Hygiene support
Disinfection rinse and temperature monitoring
A special high-temperature rinse and monitored wash temperatures help support safer, more controlled laundry routines.
Spin performance
1,300 rpm spin with 518 g-factor
Strong extraction helps remove more water from the load, reducing drying time and helping keep laundry moving.
Low residual moisture
44% residual moisture with hot rinse
Drier loads reduce pressure on the dryer and can help lower total laundry energy use where drying is part of the process.
Efficient use
56.2 litres in 60°C cottons, cold fill
Low water use and automatic load control help reduce waste, especially where the machine is used for varied daily loads.
Fast cycles
49-minute 60°C cottons cycle on cold fill
Short cycle performance helps busy sites keep up with regular mop, cloth and workwear washing.
Easy controls
M Touch Pro colour touchscreen
Clear touch controls and programme guidance help staff select the right cycle confidently and reduce operating errors.
Dosing ready
Up to 6 liquid dispenser pump connections
Supports controlled chemical dosing for consistent results, reduced waste and simpler management of detergent use.
Connected laundry
LAN, WiFi and Miele MOVE ready
Supports digital management for compatible Miele Professional machines, including machine status, operating data and notifications where configured.
Technical specifications
Key technical details for the Miele PWM 509 Mop Star [EL DV DD], including capacity, installation requirements, power, drainage, performance and practical product features.
| Model | Miele PWM 509 Mop Star [EL DV DD] |
|---|---|
| Material number | 12699100 |
| EAN | 4002516852483 |
| Range | Miele Performance |
| Product type | Professional front-loading washing machine for facility management |
| Load capacity | 9 kg |
|---|---|
| Drum volume | 80 litres |
| External dimensions | H 1020 mm W 704 mm D 730 mm |
| Net weight | 140 kg |
| Door opening | 370 mm diameter, 180° opening angle |
| Door hinge | Right-hand |
| Power Required | 230v, 25A |
|---|---|
| Electrical connection | 1N AC 230V 50/60Hz |
| Total connected load | 5.5 kW |
| Heater rating | 5.2 kW |
| Heating type | Electric |
| 60°C cottons, cold fill | 49 minutes |
|---|---|
| 60°C cottons, hot/cold fill | 45 minutes |
| Water use, cold fill | 56.2 litres in Cottons 60°C |
| Energy use, cold fill | 1.20 kW in Cottons 60°C |
| Spin speed | 1,300 rpm |
| G-factor | 518 |
| Residual moisture | 47% cold rinse, 44% hot rinse |
| Control system | M Touch Pro |
|---|---|
| Programmability | Programmable |
| Languages | Selectable display languages |
| Delay start | Freely selectable |
| Connectivity | LAN, WiFi, Connector Box and optical service interface |
| Payment systems | Optional payment system connection |
| Water connections | Cold and hot water, 1x 1/2″ hose with 3/4″ threaded union each |
|---|---|
| Drain type | Drain valve, DN 70 |
| Detergent drawer | 3 compartments |
| Liquid dosing | Up to 6 liquid dispenser pump connections |
| Finish | Iron grey front with stainless steel control panel |
| Sound pressure level | 65 dB(A) re 20 µPa |
| Certificates and markings | CE, UKCA, VDE, VDE-EMC, IPX4, Regulation 4 compliant, WEEE |
Choosing the right machine
Is the Miele PWM 509 Mop Star the right model for me?
The Miele PWM 509 Mop Star is a strong fit for sites that need a dedicated commercial washer for mops, cleaning cloths and workwear, rather than a general domestic-style laundry machine.
It is particularly suited to facilities management, contract cleaning, schools, leisure sites and commercial buildings where cleaning textiles need to be processed consistently and returned to use efficiently.
When is this machine a good fit?
This model is a good fit where the site has a regular flow of mops, microfibre cloths and cleaning textiles, and needs a professional machine built around that specific workload.
- Suitable for sites needing a 9kg professional mop and cloth washer.
- Useful for cleaning-led laundry where standard programmes alone are not enough.
- Suitable where a drain valve is preferred for handling heavier soiling and faster discharge.
- Useful where controlled dosing, clear staff controls and consistent processes are important.
- Well suited to facilities management and contract cleaning environments.
What should I check before choosing this model?
The most important checks are the available electrical supply, drainage, water services, laundry workload and whether a mop-specific washer is genuinely needed for the site.
- Confirm that a 230v, 25A supply is available for this model.
- Confirm that the site can accept a drain valve connection with DN 70 drainage.
- Check that the 9kg capacity and 80 litre drum are enough for the daily mop and cloth volume.
- Confirm whether the site needs automatic liquid dosing or detergent drawer use.
- Review staff routines so the right programmes are used consistently.
When might another model be better?
Another model may be better if the site mainly washes general laundry, needs a smaller footprint, needs a drain pump arrangement, or regularly processes larger mop loads than a 9kg machine can comfortably manage.
- Choose a smaller Little Giants model if space is very restricted and mop volumes are modest.
- Choose a larger Mop Star model if the site processes high mop volumes every day.
- Choose a standard commercial washer if the site mainly processes towels, uniforms or domestic-style laundry.
- Choose a drain pump model only where the drainage layout requires it and the model supports it.
- Review the full laundry process before using any washer for higher-risk infection-control laundry.
Services, utilities and installation checks
This machine uses a 230v, 25A electrical supply, electric heating, hot and cold water connections and DN 70 drain valve drainage. These services should be checked before ordering.
- Power Required: 230v, 25A.
- Total connected load: 5.5 kW.
- Cold and hot water connections are required.
- Drain type: drain valve, DN 70.
- External dimensions: 1020(h) x 704(w) x 730(d) mm.
Replacing an older model?
If this model is replacing an older Miele mop washer or commercial washing machine, the key checks are capacity, drain type, power supply, footprint, dosing arrangement and whether existing site services are suitable.
Older or related Miele search terms that may be relevant include WS5073MOP, PW6080, WS5080, WS5508, WS5107, W6073 and W706. These should be checked against the exact machine being removed before confirming a replacement.
Useful replacement search terms: WS5073MOP, PW6080, WS5080, WS5508, WS5107, W6073, W706.
Compliance, hygiene and environment
The PWM 509 Mop Star includes hygiene-supporting features such as disinfection rinse and temperature monitoring, but the full hygiene outcome depends on the programme, chemicals, load handling, validation and staff procedure.
- Disinfection programmes should not be interrupted once started.
- Temperature monitoring helps support consistent cleaning and hygiene routines.
- The Miele sources list CE, UKCA, VDE, IPX4, WEEE and Regulation 4 compliance.
- The machine includes low-consumption features such as automatic load control and flow meter monitoring.
- a&f can help check whether the machine fits the site’s laundry process and compliance needs.
Need help checking suitability?
Contact us for a free specification check or site visit before ordering. Call us on 01243 55 55 25, option 1 for sales support, or email sales@a-f.co.uk.
Product downloads
Helpful documents for this machine
Download the main documents for this product below. These include the Miele product sheet and operating instructions. If you need installation guidance, compliance information or help confirming whether this is the right machine, contact a&f and we will be happy to help.
Miele PWM 509 Mop Star product sheet
Key product information including capacity, dimensions, power requirements, drainage details, performance figures and core features.
Miele PWM 509 Mop Star operating instructions
Manufacturer guidance covering operation, programme use, safety information, routine care, cleaning and user instructions for this machine.
Need another document or more product information?
If you need installation instructions, compliance documents, user training guidance or support choosing the right version of this machine, we will be happy to help. Call us on 01243 55 55 25, option 1 for sales support, or email sales@a-f.co.uk.
