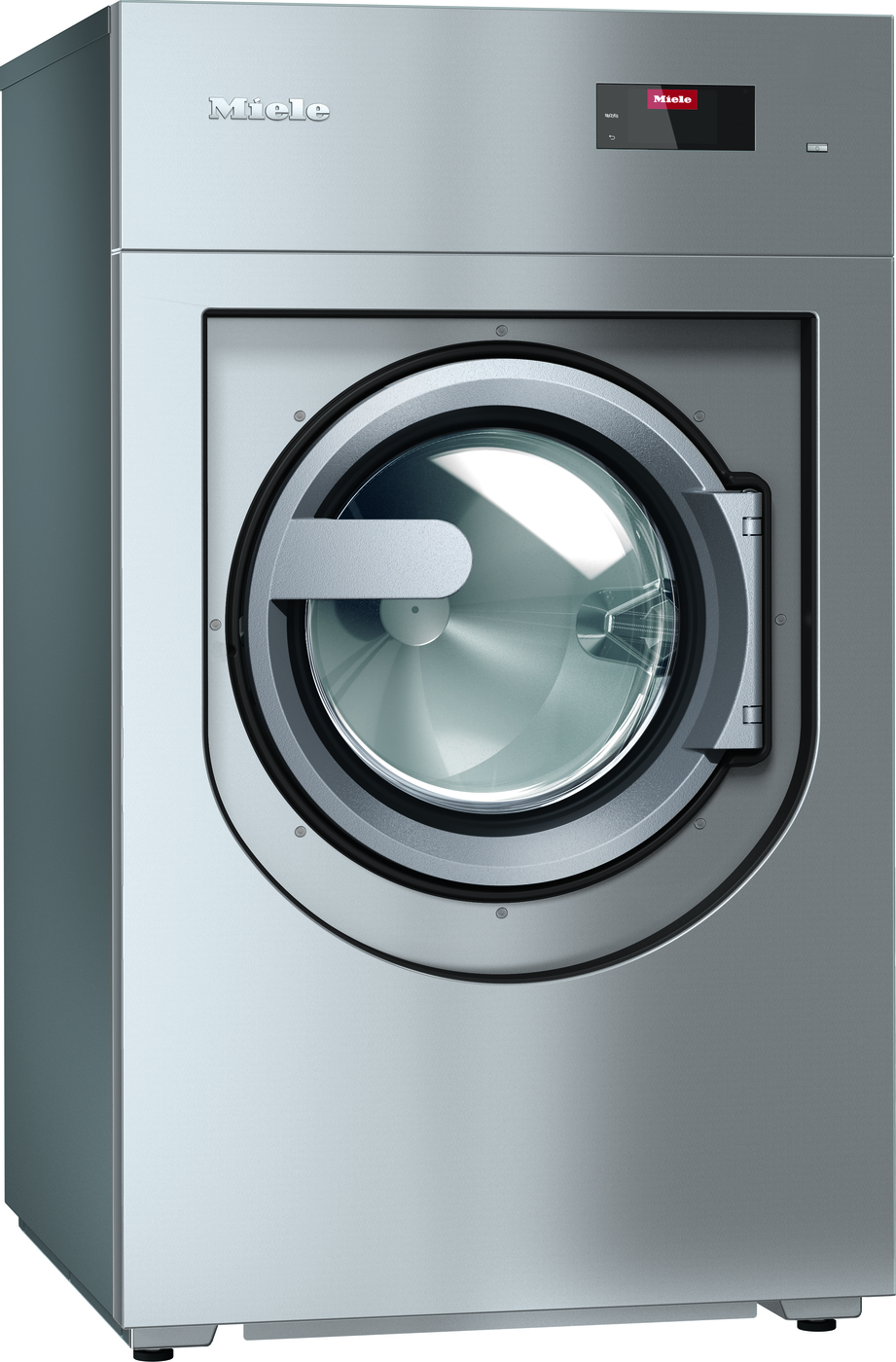

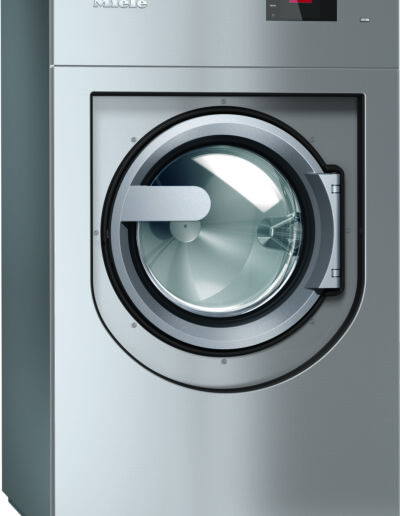

Miele PWM 514 Commercial Washing Machine
14 kg electrically heated washer-extractor with gravity drainage and M Touch Pro controls
The Miele PWM 514 is a robust 14 kg commercial washing machine designed for organisations that need dependable throughput, flexible programmes and consistently high-quality laundry results. Its 130-litre honeycomb drum, powerful extraction, programmable touchscreen controls and professional gravity-drain system make it suitable for demanding daily laundry operations.
- ✓14 kg load capacity with a spacious 130-litre stainless steel honeycomb drum
- ✓400v three-phase electric heating with a 9.6 kW total connected load
- ✓Professional DN 70 gravity drain handles water, lint and coarse soiling reliably
- ✓Up to 1025 rpm spin speed and a 364 g-factor help reduce retained moisture
- ✓Flexible M Touch Pro controls with clear programme information and multiple display languages
Fri 8.30am–5pm
Use the button below and we’ll call you back.
Product Overview
The Miele PWM 514 is a freestanding, electrically heated 14 kg commercial washer-extractor for sites processing substantial laundry volumes every day.
Its combination of a 130-litre drum, professional 1025 rpm extraction, programmable M Touch Pro controls and a durable gravity-drain system helps organisations process a wide range of linen, workwear and other textiles efficiently. Automatic load control adjusts relevant programme parameters to the load size, while hot and cold water connections give sites greater flexibility when planning energy use. A separate specialist PWM 514 Mop Star version is available for Facilities Management & Contract Cleaning applications where dedicated mop-processing programmes are required.
Suitable applications for this machine include Care Homes, Healthcare & Hospitals, Hotels & B&Bs, Commercial Laundries, Food & Beverage, Schools, Colleges & Universities and Sports Clubs, as well as many others.
At a glance
How a&f can support you
Buying commercial equipment is about more than choosing the machine. We help you get the right professional solution for your site from day one, and support you long after it is installed.
We can help with site survey, correct variant selection, supply, installation, commissioning, user training and long-term service support.
- ✓ Manufacturer-trained engineers
- ✓ Around £12,000+ of spare parts carried on each service van to improve first-time fix rates
- ✓ Warranty handling, annual servicing and service contracts
- ✓ Rental and finance options available alongside outright purchase
Need this machine supplied, installed and supported?
Speak to a&f about purchase, rental, installation and service contract options for this product. Call us on 01243 55 55 25, option 1 for sales support, email sales@a-f.co.uk, or click the green button.
Features & Benefits
The PWM 514 combines high-capacity commercial construction with practical controls, flexible programme options and installation features designed for demanding professional laundry environments.
14 kg load capacity
130-litre commercial drum
Processes larger linen and workwear loads than smaller commercial machines, helping busy sites reduce the number of cycles required.
M Touch Pro controls
Clear colour touchscreen operation
Programmes and machine functions are presented clearly, helping staff choose appropriate cycles and see programme progress and time remaining.
Programmable operation
Adapt programmes to site requirements
Programmable controls provide flexibility for different fabrics, soiling levels, hygiene processes and operational workflows.
Professional gravity drain
DN 70 dump valve
The unrestricted drainage arrangement is better suited to coarse soiling and demanding commercial use than a conventional drain pump.
Effective extraction
1025 rpm and 364 g-factor
Professional spin performance helps remove moisture before drying, supporting shorter downstream drying times and lower dryer demand.
Automatic load control
Resources adjusted to the load size
Relevant programme parameters are adapted to the laundry load, helping avoid unnecessary water and energy use on smaller loads.
Honeycomb drum 2.0
Gentle care with effective wetting
The patented stainless steel drum and scoop ribs support effective cleaning while helping protect fabrics during intensive daily use.
Flexible water connections
Hot and cold water connection capability
A suitable commercial hot-water supply can reduce electrical water-heating demand, subject to tariffs, system efficiency and distribution losses.
Automatic door lock
OneFingerTouch closing
The large 415 mm door opening and automatic locking system make regular loading and unloading straightforward for operators.
Temperature monitoring
Controlled programme temperatures
Continuous monitoring supports reliable wash results and appropriately configured hygiene programmes where temperature control is important.
LAN, WiFi and Miele MOVE
Connected laundry management
Compatible connectivity can provide machine status, notifications, consumption data, remote support and operating information through Miele MOVE where available.
Commercial durability
Tested for up to 30,000 operating hours
Tested by Miele under controlled conditions to 30,000 operating hours, not a guaranteed service life. Actual life depends on use, care and maintenance.
Technical specifications
Key specifications and site requirements for the Miele PWM 514 commercial washing machine. Final service positions and connection requirements should be checked during a site survey before installation.
Choosing the right machine
Is the Miele PWM 514 Commercial Washing Machine the right model for me?
The PWM 514 is a strong choice for organisations needing a durable 14 kg washer-extractor with flexible programmes, professional extraction and gravity drainage.
Before ordering, confirm that its capacity, programme set, electrical supply, water connections, drainage and physical size are suitable for your laundry operation and installation area.
What should I check before purchasing this machine?
The PWM 514 is intended for demanding commercial use and requires more space and substantial services than a smaller commercial washer. Consider your normal load sizes, daily throughput, textile types and available staff workflow before choosing it.
Before purchasing this machine, it is worth checking:
- Capacity: Confirm that a 14 kg machine suits your typical loads and can be kept productively occupied.
- Access: Check delivery routes, doorway widths, floor strength and working clearances against the machine’s dimensions and weight.
- Programmes: Confirm that the required linen, workwear, hygiene or specialist programmes are available and configured correctly.
- Electrical supply: The machine requires a suitable 400v three-phase, 16A electrical connection.
- Drainage: A correctly sized and positioned low-level gravity waste is essential.
- Mop processing: Facilities Management & Contract Cleaning sites processing mops should consider the specialist PWM 514 Mop Star version.
Services, drainage and cycle times
The PWM 514 requires a 400v three-phase electrical supply, suitable water services and a low-level gravity waste capable of accepting discharge from its DN 70 dump valve. The installation area and floor must also be suitable for the machine’s operating weight and dynamic forces.
It can use hot and cold water connections. A suitable commercial hot-water supply may reduce electricity used by the machine to heat water, subject to energy tariffs, system efficiency and distribution losses. A hot final rinse may also leave retained moisture warm, which can reduce the energy needed to bring that moisture to evaporation temperature when laundry is transferred promptly to a dryer.
- Power: Provide a correctly protected 400v, three-phase, 16A supply installed by a qualified electrician.
- Water: Confirm the required hot, cold and optional hard-water connections, pressures and service positions.
- Drainage: The gravity waste must be positioned below the machine outlet and sized for rapid discharge.
- Cycle times: Published figures are manufacturer reference values and vary with load, programme, incoming water temperature and site services.
- Detergent: The machine has a three-compartment detergent drawer and can be connected to external liquid-dosing equipment where required.
Replacing an older model?
The PWM 514 may be considered when replacing an older Miele commercial washer in a similar capacity range, but it should not be assumed to be a direct connection-for-connection replacement.
Relevant previous models may include:
- PW6137
- PW6131
- WS5514
Check the precise dimensions, electrical load, water connections, drainage arrangement, floor requirements, dosing equipment, controls and programme compatibility before replacing an existing machine. A site survey can identify any service alterations required.
Compliance, hygiene and environment
The PWM 514 supports programmable wash processes, monitored temperatures, hygiene programmes and a disinfection rinse. These functions can form part of an effective professional laundry procedure, but the machine alone does not guarantee infection-control or regulatory compliance.
Hygiene outcomes depend on correct machine selection, installation, programme configuration, detergent dosing, temperature validation, textile segregation, staff training and safe handling before and after washing.
- Validation: Confirm the required programme temperatures, holding times and validation arrangements for your organisation.
- Workflow: Keep soiled and clean laundry appropriately separated and train staff in safe handling procedures.
- Dosing: Use detergents and dosing settings appropriate to the textiles, soil level and selected programme.
- Maintenance: Planned servicing, routine cleaning and operator checks help preserve performance and reliability.
- Efficiency: Match programmes and load sizes to the laundry being processed rather than routinely underloading the machine.
Product downloads
Helpful documents for this machine
Download the confirmed documents for this product below. If you need installation guidance, compliance information or help confirming whether this is the right machine, contact a&f and we will be happy to help.
Miele PWM 514 Commercial Washing Machine Data Sheet
Product specifications, dimensions, performance information and connection requirements for the Miele PWM 514 commercial washing machine.
Miele PWM 514 Commercial Washing Machine Operating Instructions
Manufacturer operating guidance covering safe use, programme operation, routine care and important information for the Miele PWM 514.
Need another document or more product information?
If you need installation instructions, compliance documents, user training guidance or support choosing the right version of this machine, call us on 01243 55 55 25, option 1 for sales support, or email sales@a-f.co.uk.
