Miele PWM 907 DV Commercial Washing Machine
7kg commercial washing machine with drain valve and sluice wash for care sites
Miele PWM 907 DV is a compact commercial washing machine for sites that need fast daily washing, high-spin extraction and a choice of 230v or 400v power variants.
- ✓49-minute 60°C cycle helps keep daily laundry moving efficiently
- ✓1,600 rpm high-spin extraction helps reduce drying time and energy use
- ✓Tested to 30,000 operating hours for demanding professional use
- ✓46 litre hot-fill water use supports lower running costs per wash
- ✓Disinfection programmes help support safer laundry routines in care settings
Fri 8.30am–5pm
Use the button below and we’ll call you back.
Product Overview

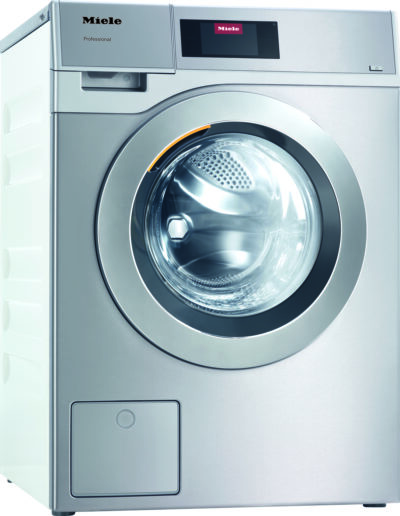

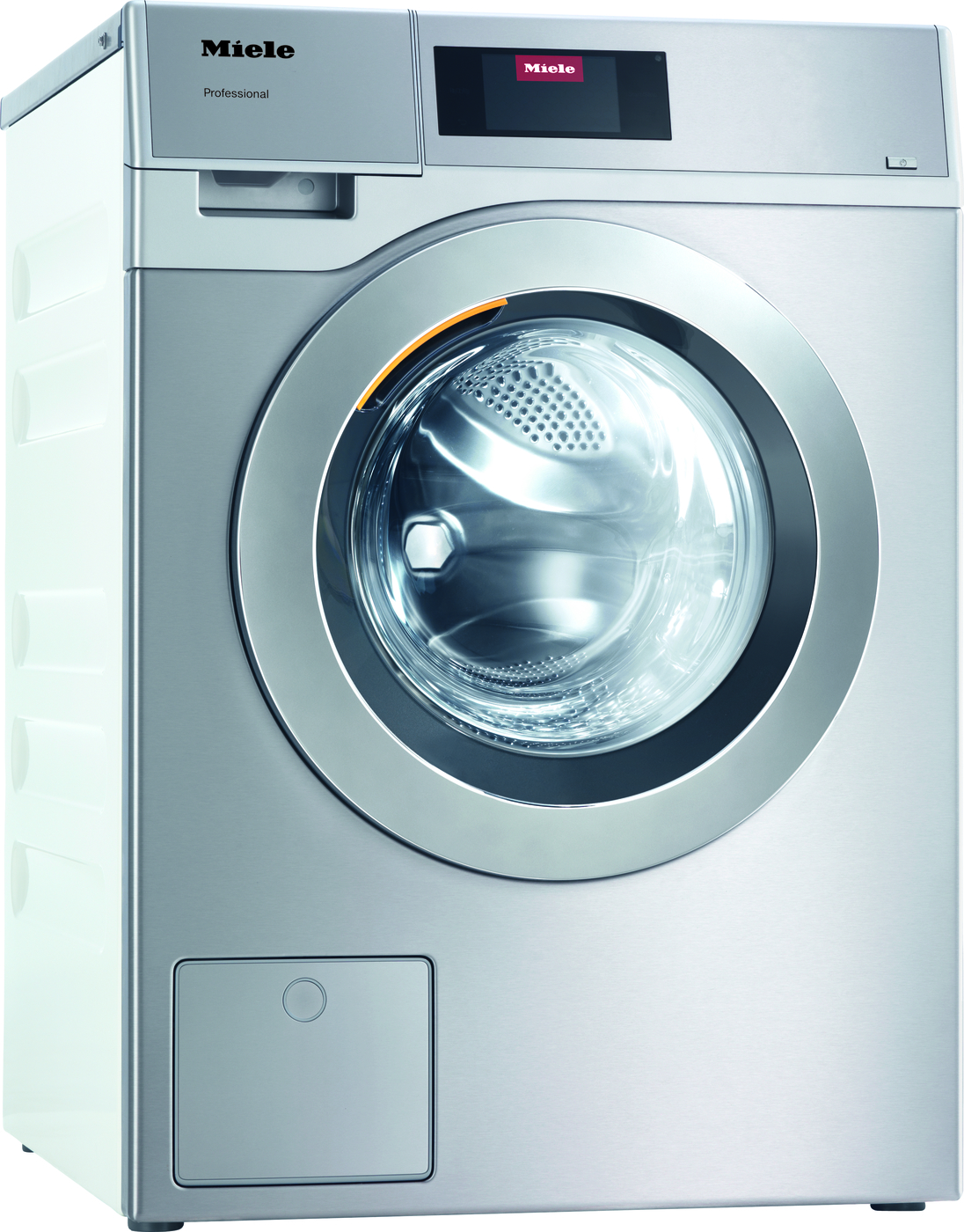

The Miele PWM 907 EL DV-1 is a 7kg commercial washing machine from the Miele Little Giants Performance Plus range, built for care, healthcare, hospitality and professional sites that need fast cycles, reliable hygiene support and strong daily performance.
It combines a 64 litre honeycomb drum, a 49-minute 60°C cycle with hot and cold fill, and high-spin 1,600 rpm extraction to help reduce drying time and keep laundry moving efficiently.
With hygiene-supporting programmes, temperature monitoring, flexible 230v or 400v power options and Miele’s tested 30,000 operating hour benchmark, it is a strong compact choice for sites where reliability, compliance support and low running costs matter.
At a glance
850(h) x 596(w) x 714(d)
230v, 25A or 400v, 13A
49-minute 60°C cycle with hot and cold fill
How a&f can support you
Buying commercial laundry equipment is about more than choosing the machine. We help you confirm the right Miele Professional model, power variant, programme setup and installation requirements for your site from day one, and support you long after it is installed.
We can help with site survey, correct variant selection, supply, installation, commissioning, user training and long-term service support.
- ✓ Manufacturer-trained engineers
- ✓ Around £12,000+ of spare parts carried on each service van
- ✓ Warranty handling, annual servicing and service contracts
- ✓ Rental and finance options available alongside outright purchase
Need this machine supplied, installed and supported?
Speak to a&f about purchase, rental, installation and service contract options for this product. Call us on 01243 55 55 25, option 1 for sales support, email sales@a-f.co.uk, or click the green button.
Features and buyer benefits
The Miele PWM 907 EL DV-1 gives smaller commercial sites a compact, high-performance washer with drain valve drainage, fast 60°C programmes, high-spin extraction and flexible 230v or 400v power options.
Capacity
7kg load with 64 litre honeycomb drum
A practical size for smaller commercial laundry rooms, shared facilities and professional sites where domestic machines are not built for the workload.
Fast cycles
49-minute 60°C cycle with hot and cold fill
Helps keep daily laundry moving where a suitable hot water supply is available and fast turnaround matters.
Cold-fill performance
59-minute 60°C cycle on cold fill
Gives strong programme performance even where only cold water heating is relied on during the wash process.
High-spin extraction
1,600 rpm spin with 704 g-factor
Removes more water before drying, helping reduce drying time, dryer energy use and pressure on the laundry flow.
Lower residual moisture
Around 45% residual moisture with hot rinse
Loads leave the washer drier, which can help improve overall wash-and-dry turnaround in a compact laundry setup.
Drain valve
DN70 drain valve for gravity drainage
A strong choice where the site has suitable low-level drainage and wants faster, more robust emptying than a pump arrangement.
Durability
Tested by Miele to 30,000 operating hours
A Miele laboratory testing figure that supports confidence for regular professional use, without treating it as a lifespan guarantee.
Hygiene support
Disinfection rinse and temperature monitoring
Supports safer laundry routines where the right programme, temperature, load handling and site process are used.
Efficient use
Automatic load control and flow meter
Water and energy use are adjusted to the load, helping reduce waste when every wash is not a full 7kg batch.
Simple controls
M Touch Flex colour touchscreen
Clear programme selection helps staff and users choose the right wash quickly and consistently.
Flexible operation
Payment and dosing connections available
Useful for communal laundries, managed sites and customers who want controlled detergent dosing or paid user access.
Connected laundry
WiFi and optional LAN for Miele MOVE
Supports digital management for compatible Miele Professional machines, including status visibility, operating data and service support where configured.
Technical specifications
Key technical details for the Miele PWM 907 EL DV-1 drain valve washing machine, including capacity, dimensions, power variants, performance, drainage, controls and connectivity.
| Model | Miele PWM 907 EL DV-1 |
|---|---|
| Material numbers | 11115710, 230v, 25A 11115740, 400v, 13A |
| Range | Miele Little Giants, Performance Plus |
| Product type | Professional front-loading washing machine |
| Finish | Lotus white front with stainless steel control panel |
| Load capacity | 7 kg |
|---|---|
| Drum volume | 64 litres |
| External dimensions | H 850 mm W 596 mm D 714 mm |
| Net weight | 103 kg |
| Construction | Front-loader, stackable |
| Drainage | Drain valve, DN70 |
| Power Required | 230v, 25A or 400v, 13A |
|---|---|
| 230v variant | 5.5 kW total connected load, 5.3 kW heater rating |
| 400v variant | 5.5 kW total connected load, 5.3 kW heater rating |
| Heating type | Electric |
| Water connection | Cold and hot water, 1/2" hose with 3/4" threaded union |
Miele also lists a possible 230v, 13A conversion on the 400v material number. This should be checked carefully before quotation or installation.
| 60°C cottons, cold fill | 59 minutes |
|---|---|
| 60°C cottons, hot/cold fill | 49 minutes |
| Water use, cold fill | 49 litres |
| Water use, hot/cold fill | 46 litres |
| Spin speed | 1,600 rpm |
| G-factor | 704 |
| Residual moisture | 48% cold rinse, 45% hot rinse |
| Control system | M Touch Flex |
|---|---|
| Programmability | Programmable |
| Delay start | Up to 96 hours |
| Languages | Selectable during operation |
| Connectivity | WiFi, WiFiConn@ct and optional LAN module |
| Payment systems | Optional payment system connection |
| Door opening | 300 mm diameter, 167° opening angle |
|---|---|
| Door hinge | Right-hand |
| Drum | Honeycomb drum with perforated stainless steel rear panel |
| Dosing | 3-compartment detergent drawer, CapDosing and up to 6 liquid dispenser pump connections |
| Hygiene features | Disinfection rinse, temperature monitoring and proven hygiene listing |
| Noise level | ≤70 dB(A) re 20 µPa |
| Listed approvals | CE, UKCA, VDE, VDE-EMC, IPX4, WEEE and Regulation 4 listed by Miele |
Choosing the right machine
Is the Miele PWM 907 EL DV-1 the right model for me?
The Miele PWM 907 EL DV-1 is a strong choice where a compact 7kg commercial washer is needed, but the site has suitable low-level gravity drainage and wants the benefits of a drain valve rather than a drain pump.
It is best suited to private residences, shared laundries, schools, hospitality, sports clubs, smaller care environments, housing sites and light commercial laundries where fast programmes, high-spin extraction and long-term professional build quality matter.
When is this machine a good fit?
This model is a good fit where the site needs a compact commercial washing machine with professional controls, fast cycle options and a drain valve.
- Suitable where a 7kg load capacity is enough for the daily laundry volume.
- Useful where a compact washer and matching dryer stack is required.
- Suitable for sites with low-level drainage that can accept a DN70 drain valve connection.
- Good for sites that value short 60°C programmes and strong water extraction.
- Useful for communal or managed laundries where optional payment connection may be needed.
What should I check before choosing this model?
The main checks are capacity, drainage, power supply, hot water availability and whether the site needs any specific hygiene or compliance process.
- Confirm whether the site needs the 230v, 25A version or the 400v, 13A version.
- Check that the drain is suitable for a DN70 drain valve connection.
- Confirm that a 7kg washer is the right size for the daily laundry workload.
- Check whether a suitable hot water supply is available if you want the shortest quoted 60°C cycle time.
- Review whether detergent dosing, payment connection or connected laundry reporting is required.
When might another model be better?
Another model may be better if the site does not have suitable gravity drainage, regularly processes loads above 7kg, or has more demanding laundry throughput.
- Choose a drain pump model if the site cannot provide a suitable low-level gravity drain.
- Consider a larger washer if daily laundry volume would regularly exceed comfortable 7kg loading.
- Consider a higher-capacity Miele model where bedding, towels, workwear or care laundry volumes are consistently high.
- Review the full wash and dry process if the dryer cannot keep up with washer output.
- For specialist infected-laundry handling, check the full programme set, site process and compliance requirement before specifying.
Services, utilities and installation checks
This model is electrically heated and available in 230v, 25A and 400v, 13A variants. It has hot and cold water connections and uses a DN70 drain valve for drainage.
- External dimensions: 850(h) x 596(w) x 714(d) mm.
- Water connections: hot and cold water via 1/2" hose with 3/4" threaded union.
- Drainage: DN70 drain valve, suitable site drainage required.
- Shortest listed 60°C programme is based on hot and cold water connection.
- Allow suitable access for installation, ventilation, servicing and safe daily use.
Replacing an older model?
If this washer is replacing an older Miele or other commercial machine, the key checks are drainage type, power supply, water connections, overall dimensions and whether the existing dryer pairing is still suitable.
The drain valve version should not be assumed to suit a site that previously used a drain pump model. The site drainage should be checked before ordering.
This model may be relevant when replacing or searching for older Miele washer models including PW6055, PW6065, PW5064, WS5425, WS5405, WS5105, WS5426, WS5406 and W406.
Compliance, hygiene and environment
The PWM 907 EL DV-1 includes hygiene-supporting features such as disinfection rinse and temperature monitoring. Hygiene outcomes still depend on the selected programme, wash temperature, chemicals, load handling, segregation and staff procedure.
- Miele lists proven hygiene and tested virus removal for the Little Giants series.
- Disinfection rinse provides an additional hygiene step where the correct programme is used.
- For care, healthcare or veterinary use, the whole laundry process should be reviewed, not just the washer model.
- The machine is listed with CE, UKCA, VDE, VDE-EMC, IPX4 and Regulation 4 compliance by Miele.
- a&f can help confirm whether this model, capacity and drain type are suitable for your site.
Need help checking suitability?
Contact us for a free specification check or site visit before ordering. Call us on 01243 55 55 25, option 1 for sales support, or email sales@a-f.co.uk.
Product downloads
Helpful documents for this machine
Download the main documents for the Miele PWM 907 EL DV-1 below. Separate product sheets are provided for the 230v and 400v electrical variants, along with the Miele operating instructions for this washer range.
Miele product sheet, 230v
Product information for the 230v, 25A drain valve version, including capacity, dimensions, power requirements, drainage details and core features.
Miele product sheet, 400v
Product information for the 400v, 13A drain valve version, including capacity, dimensions, power requirements, drainage details and core features.
Miele operating instructions
Manufacturer guidance covering safe operation, programme use, routine care, cleaning and user instructions for the PWM 907 washer.
Need another document or more product information?
If you need installation instructions, compliance documents, user training guidance or support choosing the right version of this machine, we will be happy to help. Call us on 01243 55 55 25, option 1 for sales support, or email sales@a-f.co.uk.
