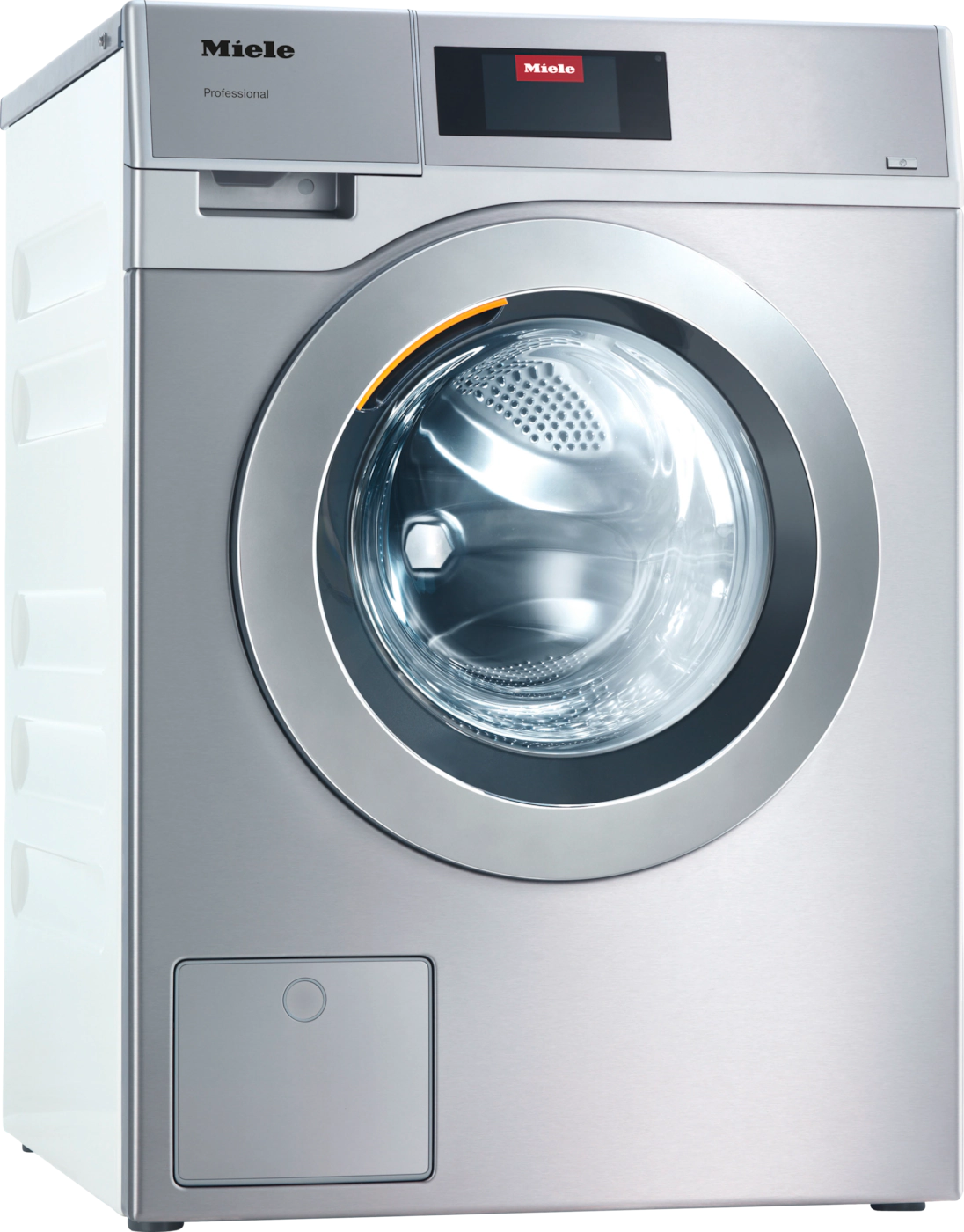

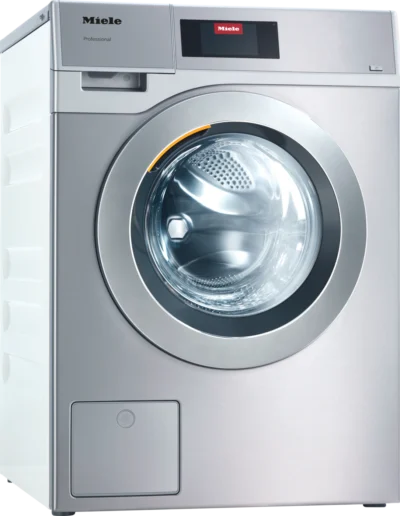

Miele PWM 907 EL DV-1 Commercial Washing Machine

7kg professional washer with drain valve and 64 litre drum

The Miele PWM 907 EL DV-1 is a compact commercial washing machine for care, hospitality, shared laundry, education and small business sites that need professional wash quality, fast turnaround and dependable daily use.

  • 7kg load capacity with a 64 litre Miele honeycomb drum
  • 49 minute 60°C cottons cycle with hot and cold water connection
  • High-spin 1,600 rpm extraction helps reduce drying time
  • Tested by Miele for 30,000 operating hours under laboratory conditions
  • M Touch Flex controls help staff select programmes with confidence
Call Back
Talk to an expert today
Our team can advise on the best solution for your unique setup – and we’ll come out to see you for FREE.
01243 55 55 25
Our office hours are
Mon–Thu 8.30am–5.30pm
Fri 8.30am–5pm
Outside office hours?
Use the button below and we’ll call you back.
Request a call back

Product Overview

The Miele PWM 907 EL DV-1 is a 7kg professional front-loading washing machine from the Miele Little Giants Performance Plus range, built for sites that need commercial wash quality in a compact footprint.

With a 64 litre drum, M Touch Flex controls, high-spin 1,600 rpm extraction and a Miele 60°C cottons programme figure of 49 minutes when connected to hot and cold water, it is designed to keep everyday laundry moving efficiently. Programme times depend on selected cycle, load, water temperature and site services.

This drain valve version is a practical choice for care, hospitality, schools, shared laundries, sports clubs, beauty and fitness sites, food-related environments and small businesses where reliable drainage, hygiene support and professional durability are important.

At a glance

Dimensions (in mm):
H 850 x W 596 x D 714

Power Required:
230v, 25A or 400v, 13A variants available

Drain Type:
Drain valve / dump valve, DN 70

How a&f can support you

Buying commercial laundry equipment is about more than choosing the machine. We help you get the right professional solution for your site from day one, and support you long after it is installed.

We can help with site survey, correct variant selection, supply, installation, commissioning, user training and long-term service support.

  • Manufacturer-trained engineers
  • Around £12,000+ of spare parts carried on each service van to improve first-time fix rates
  • Warranty handling, annual servicing and service contracts
  • Rental and finance options available alongside outright purchase
Miele Professional UK No.1 Partner 2025 - a&f

Need this machine supplied, installed and supported?

Speak to a&f about purchase, rental, installation and service contract options for this product. Call us on 01243 55 55 25, option 1 for sales support, email sales@a-f.co.uk, or click the green button.

Features and buyer benefits

A practical look at the features that matter in daily use, including wash performance, drying efficiency, durability, hygiene support, controls, dosing, drainage and site flexibility.

7kg capacity

Compact commercial washer with 64 litre drum

A useful size for smaller commercial laundry rooms, shared laundries, care settings, hospitality, schools and private residences where domestic equipment is not built for the workload.

Fast 60°C cycle

49 minutes with hot and cold water connection

Miele lists a 49 minute 60°C cottons programme with hot and cold water connection, helping sites process daily laundry efficiently when services and programme selection support it.

High-spin extraction

1,600 rpm spin and 704 g-factor

Strong extraction removes more water before drying, helping reduce dryer running time, energy use and pressure on the overall laundry process.

Lower residual moisture

45% residual moisture with hot rinse

Loads leave the machine drier than they would from many lower-spin machines, which can support faster turnaround and lower total laundry running costs.

Commercial durability

Tested by Miele for 30,000 operating hours

Miele’s laboratory test figure supports confidence for regular professional use. Actual operating life depends on usage, maintenance, care and site conditions.

M Touch Flex controls

Full-touch colour display for easier operation

Clear programme selection helps staff choose the right cycle quickly, reducing training time and supporting more consistent laundry routines.

Drain valve configuration

DN 70 drain valve for reliable gravity drainage

The drain valve arrangement is useful where laundry may contain heavier soiling or where reliable low-level drainage is preferred over a drain pump installation.

Hygiene support

Programmes and temperature monitoring support controlled laundry hygiene

The machine supports Miele hygiene features, including temperature monitoring and programme options. Hygiene outcomes still depend on the full laundry process, detergent choice and staff procedure.

Efficient water use

49 litres cold fill or 46 litres hot fill on Miele 60°C cottons figures

Automatic load control, flow metering and efficient programme design help reduce unnecessary water and energy use compared with less controlled laundry processes.

Dosing ready

Up to 6 liquid dispenser pump connections

Optional liquid dosing connection can help sites improve chemical consistency, reduce manual dosing errors and support repeatable wash results where configured.

Connected laundry

WiFi, optional LAN and Miele MOVE support where configured

Connectivity can support compatible digital management, including machine status, operating data, notifications and consumption visibility where the site has been set up for it.

Stackable design

Professional laundry performance in a compact footprint

The front-loading stackable design helps sites create a compact washer and dryer setup where space is limited, subject to the correct stacking kit and installation assessment.

Technical specifications

Key technical details for the Miele PWM 907 EL DV-1, including capacity, dimensions, power options, drain valve configuration, performance, controls, dosing and connectivity.

1. Core product details
Model Miele PWM 907 [EL DV-1]
Product type Professional front-loading washing machine
Range Miele Little Giants, Performance Plus
Material numbers 11115710, 230v 25A
11115740, 400v 13A
Finish Lotus white front with stainless steel control panel
Construction Front-loader, stackable
2. Size & installation
Load capacity 7 kg
Drum volume 64 litres
External dimensions H 850 mm
W 596 mm
D 714 mm
Net weight 103 kg
Door opening 300 mm diameter, 167° opening angle
Door hinge Right-hand
3. Power
Power Required 230v, 25A or 400v, 13A variants available
230v variant 230V~ 50Hz, 25A
230v connected load 5.50 kW
400v variant 2N~ 400V 50Hz, 13A
400v connected load 5.50 kW
Heating type Electric

The 400v product sheet also lists a possible 230v 13A conversion with lower connected load. a&f should confirm the correct variant and electrical suitability before ordering.

4. Performance & extraction
60°C programme duration 49 minutes with hot and cold water connection
59 minutes with cold water connection
Spin speed 1,600 rpm
G-factor 704
Residual moisture 45% with hot rinse
48% with cold rinse
Water consumption 46 litres with hot and cold water connection
49 litres with cold water connection
Tested operating hours 30,000, Miele laboratory test figure
5. Controls & connectivity
Control system M Touch Flex
Programmability Programmable
Delay start Up to 96 hours
Display features Time left display, programme sequence indicator and selectable language
Connectivity WiFi, WiFiConn@ct and optional LAN module
Payment system Optional payment system connection
6. Other features
Drain type Drain valve / dump valve, DN 70
Water connection Cold and hot water, 1x 1/2" hose with 3/4" threaded union each
Detergent drawer 3 compartments
Liquid dosing Up to 6 dispenser pump connections, optional
Drum Miele honeycomb drum with perforated stainless steel drum rear panel
Approvals and symbols CE, UKCA, WRAS, Regulation 4 compliant, VDE and IPX4 splash-proof safety rating

Choosing the right machine

Is the Miele PWM 907 EL DV-1 the right model for me?

The Miele PWM 907 EL DV-1 is a compact 7kg professional washing machine with drain valve drainage, high-spin extraction and M Touch Flex controls. It is best suited to sites that need commercial wash performance in a small footprint, with a drainage setup that can cope better with more demanding laundry processes than a drain pump machine.

The key question is not only what drainage already exists on site, but what the machine needs to process. This drain valve version is often the better starting point where laundry may be heavily soiled, where stronger hygiene routines are needed, or where hair, debris or contamination could make a drain pump less reliable.

When is this machine a good fit?

This model is a good fit where the site needs a compact commercial washer, but the laundry process is more demanding than standard domestic-style washing.

  • Suitable for sites needing a 7kg professional washer with strong daily reliability.
  • Useful where a drain valve / gravity drain arrangement is preferred for heavier soiling.
  • Suitable for care settings handling soiled clothing or bedding in smaller batches.
  • Useful for veterinary, animal care, equestrian or cleaning environments where hair, dirt or debris may be present.
  • Suitable where the site needs a compact Miele Professional washer that can be supported with dosing, payment or connectivity options if required.
What should I check before choosing this model?

Before choosing this machine, check the workload, soiling level, hygiene requirement, drain position and electrical supply. The drain valve version should be chosen because it suits the laundry process, not simply because it is the nearest match to the existing services.

  • Check whether 7kg capacity is large enough for the daily laundry volume.
  • Confirm whether laundry may include faecal contamination, animal hair, mop debris, equestrian dirt, blanket hair or other heavier soiling.
  • Confirm whether the site needs hygiene programmes, sluice-style processing or a stronger infection-control routine.
  • Check whether the site is better suited to the 230v 25A version or the 400v 13A version.
  • Confirm whether liquid dosing, payment connection, WiFi, optional LAN or Miele MOVE support is required.
When might another model be better?

Another model may be better if the laundry is standard, the site does not expect heavy soiling, or the main requirement is simple installation into a pumped waste. In those cases, the PWM 907 drain pump version may be the more appropriate option.

  • Choose a drain pump model where the laundry is standard and large particles, hair or debris are not expected.
  • Consider a drain pump version for private residences, housing associations and shared laundries doing normal washing without heavy soiling.
  • Consider a larger Miele washer if the site regularly needs more than 7kg per load.
  • Consider a Mop Star model if the site is regularly washing mops, cleaning cloths or facilities-management textiles.
  • Consider a larger drain valve washer if the site has heavier infection-control needs, larger soiled loads or higher daily throughput.
Services, utilities and installation checks

This model uses a DN 70 drain valve / dump valve arrangement, so the drain position and installation height need checking. If the laundry process requires a gravity drain machine, site changes may sometimes be possible, such as using a plinth or altering the waste position.

  • Drain type: drain valve / dump valve, DN 70.
  • Power options: 230v 25A or 400v 13A variants are available.
  • Water services: hot and cold water connection can help support faster 60°C wash times.
  • Miele lists a 49 minute 60°C cottons programme with hot and cold water connection, and 59 minutes with cold water connection.
  • Programme times depend on selected programme, load, incoming water temperature and site services.

a&f can assess the site and advise whether the correct answer is a drain valve machine, a drain pump machine, or an installation change that allows the right machine for the laundry process to be fitted.

Replacing an older model?

The PWM 907 range is commonly considered when replacing older compact Miele Professional washing machines. The right replacement still depends on the existing services, drainage type, capacity, programme needs, dosing, payment systems and the type of laundry being processed.

Relevant older model searches for this product family include PW6055, PW6065, PW5064, WS5425, WS5405, WS5105, WS5426, WS5406 and W406.

When replacing an older machine, a&f should check whether the previous unit was drain pump or drain valve, and whether the new machine needs to handle standard washing, hygiene programmes, heavily soiled laundry or sluice-style processes.

Compliance, hygiene and environment

This machine can support controlled hygiene routines, but the machine alone does not guarantee compliance. Hygiene outcomes depend on the full process, including machine selection, programme setup, laundry segregation, detergent choice, staff procedure, temperature validation and site handling.

  • For care settings, check whether the laundry includes double incontinence, soiled bedding, soiled clothing or other contaminated items.
  • For veterinary and animal care sites, check whether animal hair and debris are likely to enter the wash process.
  • For equestrian sites, check whether rugs, blankets, hair and dirt make a drain valve machine the more reliable option.
  • For regulated sites, water regulations, WRAS / Regulation 4 requirements and site-specific risk assessments should be checked before specification.
Need help deciding between drain valve and drain pump?

Call 01243 55 55 25, option 1 for sales support, email sales@a-f.co.uk, or ask a&f to assess your laundry process, soiling level, hygiene needs, drainage and electrical services before you choose.

Product documents

Downloads for the Miele PWM 907 EL DV-1

Download the operating instructions and product sheets for the Miele PWM 907 EL DV-1. The two product sheets cover the 230v 25A and 400v 13A variants, so the correct version should be checked before quotation or installation.

Operating instructions

Miele PWM 907 washer operating instructions

User and operating information for the Miele PWM 907 professional washing machine range.

Product sheet

Miele PWM 907 EL DV-1 230v product sheet

Product sheet for the 230v, 25A drain valve version, material number 11115710.

Product sheet

Miele PWM 907 EL DV-1 400v product sheet

Product sheet for the 400v, 13A drain valve version, material number 11115740.

Need help choosing the right variant?

Speak to a&f before ordering if you are unsure about the correct power supply, drain valve arrangement, stacking setup, dosing system or service support. Call 01243 55 55 25, option 1 for sales support, or email sales@a-f.co.uk.
